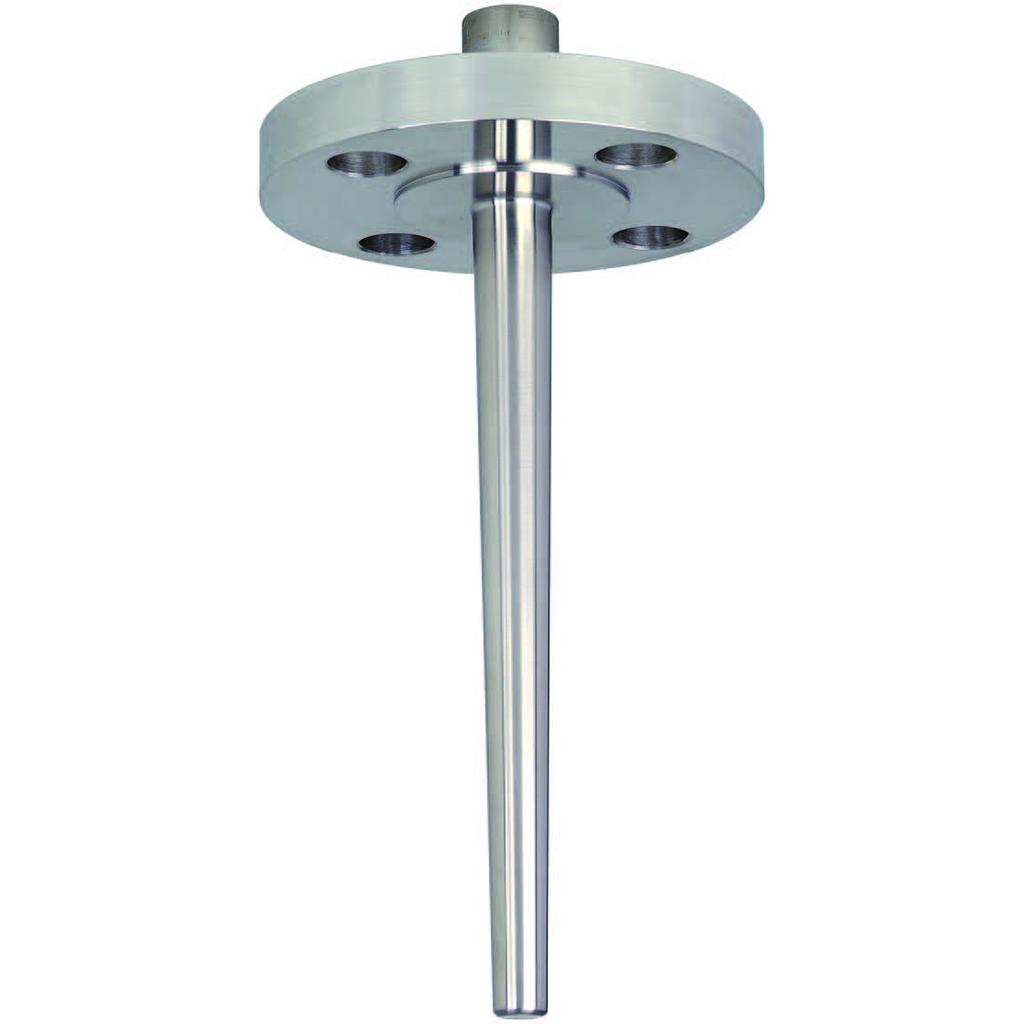

Representative photo. Please check item description for details.
Wika TW10-F FPW 2" 150LB FLANGED, 1/2" NPT female CONNECTION TO THERMOMETER, U=30" INSERTION, ALL HR160 MATERIAL
Manufacturer: Wika Instrument Lp
Mfg Product Code: ZT5420.874
Weight: 15.0 lb(s)
On Hand: 0
Features:
- APPROVAL DRAWING WILL BE NEEDED
- Part number pending order, Drawing number pending order
- TW10-F FPW 1/2 NPT female
- U=30.000 inch B=0.260" (6.6 mm) HR160
- Flange: 2 inch 150 lbs RF
- Connection to thermometer [N]: 1/2" NPT female
- Material: HR160
- Flange material: HR160, Thermowell style: Tapered
- Head length [H]: 2.25 inch
- Insertion length [U]: 30.000"
- Bar diameter [Bd or F2]: 1.125" (28.6 mm)
- Root diameter [Q]: 1.063 inch
- Tip diameter [V or F3]: 0.750"
- Bore size [B or d1]: 0.260"
- Bore depth / stem length (US), [A]: 32.000"
Wika TW10-F FPW 2" 150LB FLANGED, 1/2" NPT female CONNECTION TO THERMOMETER, U=30" INSERTION, ALL HR160 MATERIAL
Measurement Maximum:0
Process Connection Type:ASME 150#
Measurement Minimum:0
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | ASME 150# |
| Measurement Minimum | 0 |
