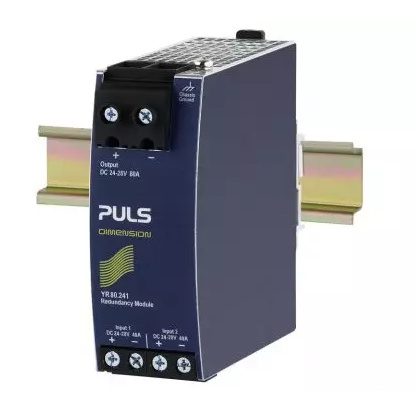

Puls Redundancy Module, MOSFET, 12-28VDC, 80A, 2 x 40A Dual Input Bottom, 3-Phase

Manufacturer: Puls Lp

Mfg Product Code: YR80.241

Weight: 1.0 lb(s)

The Puls YR80.241 is an 80A, 24V MOSFET redundancy module with dual 40A inputs. It provides seamless power redundancy by automatically switching between inputs, ensuring reliable operation. Designed for high-demand industrial applications, this module enhances system uptime and efficiency.

Features

• For N+1 and 1+1 redundant systems
• Dual input with single output
• Suitable for all power supplies
• Only 50 mV voltage drop at 40 A output current
• Only 2.7 W loss at 10 A and 8.3 W at 80 A output current
• 160 % (130 A) Peak load capability
• Reverse input polarity protection
• Full power between -40 °C and +70 °C
• Width only 46 mm
• Rugged metal housing
• Easy wiring:
  Distribution terminal for negative pole included
