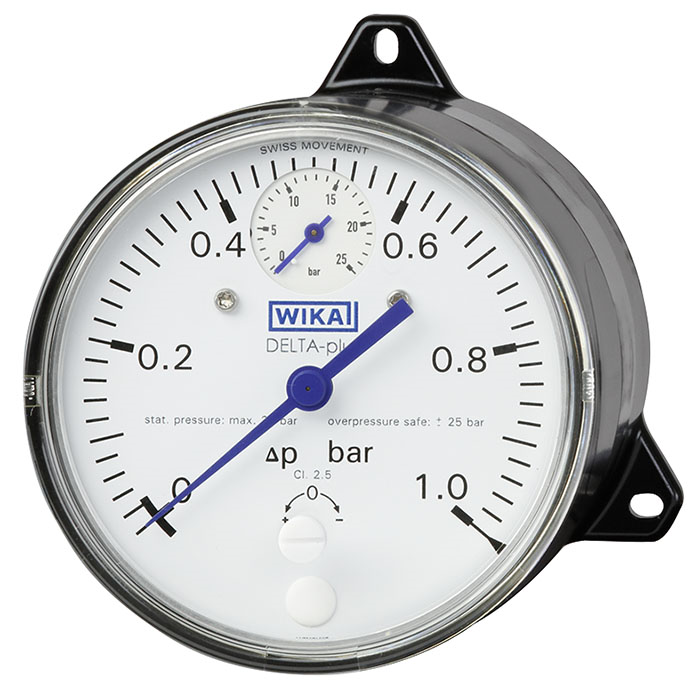

Wika DPG40 Series 100 mm Differential Pressure Gauge, DELTA-Plus w/Integrated Working Pressure Indication
Manufacturer: Wika Instrument Lp
Mfg Product Code:
DPG40 Series Differential Pressure Gauge
The Wika DPG40 Series Differential Pressure Gauge, DELTA-Plus with Integrated Working Pressure Indication, is designed for precise monitoring of filtration, flow, and level in various applications. Ideal for use in boilers, pressure vessels, drinking and cooling-water treatment plants, pressure-boosting and pumping stations, heating technology, and fire-extinguishing systems, this gauge meets diverse industrial needs.
Key features include a shatterproof window and a robust measuring chamber made of either aluminum or stainless steel, ensuring durability under increased requirements. The gauge offers low scale ranges from 0 to 160 mbar, making it suitable for applications requiring low differential pressure monitoring. With a high accuracy of 1.6%, it provides reliable readings essential for critical processes.
The DELTA-line product family, including the Wika DPG40 Series, is particularly valued in process heating technology, HVAC industries, water and wastewater management, and machine building and plant construction. These gauges excel in monitoring filters, compressors, and pumps, ensuring optimal system performance. The integrated working pressure indication is a standout feature, allowing users to simultaneously read both working and differential pressures. This dual functionality reduces the need for additional measuring and sealing points, thus lowering installation costs and complexity.
For applications requiring enhanced stability, the stainless steel measuring chamber is ideal, especially for gaseous media. Each gauge undergoes helium leak testing, ensuring superior performance even in hazardous environments. Branom Instrument Co. is the premier source for the Wika DPG40 Series, offering unmatched quality and reliability for your pressure measurement needs.
Order Code Prefix: DPG40.100-ZZZ-
Wika DPG40 Series 100 mm Differential Pressure Gauge, DELTA-Plus w/Integrated Working Pressure Indication
DPG40 Series Differential Pressure Gauge
Nominal Size:100 mm
Explosion Protection:[Z] Without
Ignition Protection:[Z] Without
Zone:[Z] Without
Measuring Chamber:[A] Aluminum, Black Painted
Window:[BZ] Plastic w/Zero Point Adjustment
Certificates:[Z] Without
Approvals:[Z] Without
Additional Ordering Info:[Z*] Without
Ingress Protection:[I] IP 65
Medium Temp Range:[A] -10...+90 °C
Pressure Gauge Standard:[U] US-Standard
Logo Options:[ZZZZZZ]
Manufacturer Logo:[2] *WIKA®*
Serial Number:[2] With Serial Number
Stop Pin on Dial:[Z] Without
Text for Dial:[Z] Without
Gauge: Brand:Wika
Gauge: Model:DPG40
Gauge: Dial Size:4 in (100 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Differential Pressure
Gauge: Measuring Principle:Other
Gauge: Fill Type:Dry
Gauge: Product Unit of Measure:bar, mbar, kPa
Gauge: Process Connection Size:G 1/4 Female, G 1/4 B, G 1/2 B, 54 mm, 6 mm, 8 mm, 10 mm
Gauge: Process Connection Location:Bottom, In Line, 12 o'clock
Gauge: Process Connection Type:Compression Fitting w/Ferrule, 2-Way (2 x)
Gauge: Accuracy:±3%, ±2%
Gauge: Ingress Protection:IP 65
Gauge: Window:Plastic, Clear
