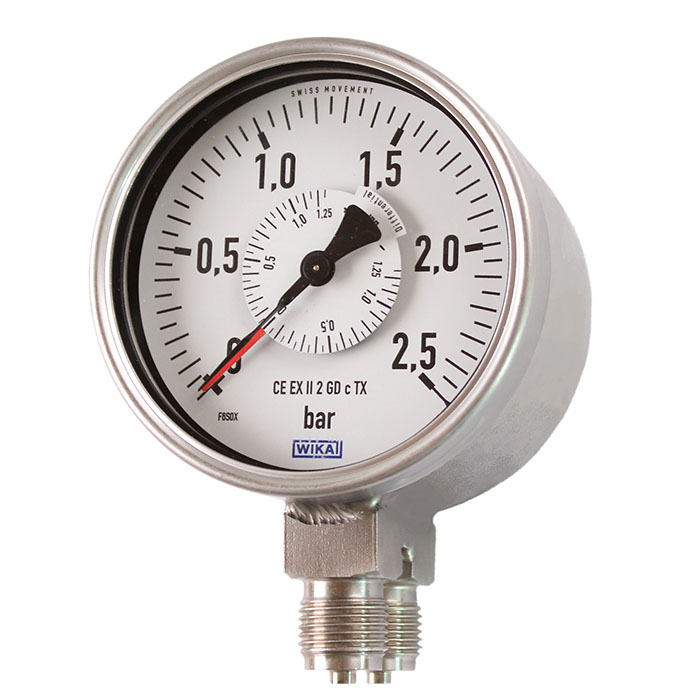

Wika 733.02 Series 4" Differential Pressure Gauge, Parallel Entry, Liquid Filled
Manufacturer: Wika Instrument Lp
Mfg Product Code:
733.02 Diff Press Gauge, Liquid Filled
The Wika 733.02 Series Differential Pressure Gauge offers an economical and reliable solution for monitoring differential pressure with ranges from 0 to 1000 bar. This liquid-filled gauge is designed to ensure accurate readings and enhanced durability in various applications. The liquid filling helps to dampen vibrations and pulsations, making it ideal for challenging environments.
Branom Instrument Co. is proud to offer this high-quality pressure gauge, known for its exceptional performance and dependability. Discover why Branom is the best store for all your instrumentation needs with the Wika 733.02 Series Differential Pressure Gauge.
Order Code Prefix: 733.02-E-
Wika 733.02 Series 4" Differential Pressure Gauge, Parallel Entry, Liquid Filled
733.02 Diff Press Gauge, Liquid Filled
Special Design Features:[Z] Without
Certificates:[Z] Without
Approvals:[Z] Without
Electric Arm Contact:[Z] Without
Additional Ordering Info:[Z] Without
Accuracy Class:[3] Class 1.6
Ingress Protection:[I] IP 65
Tags & Labels:[Z] Without
Packing:[2] Single Packing
Gauge: Brand:Wika
Gauge: Model:733.02
Gauge: Dial Size:4 in (100 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Differential Pressure
Gauge: Measuring Principle:Bourdon Tube
Gauge: Fill Type:Liquid Filled / Fillable
Gauge: Product Unit of Measure:bar
Gauge: Process Connection Size:G 1/2 B, 1/2 NPT, G 1/4 B, 1/4 NPT, G 3/8 B, M20 x 1.5
Gauge: Process Connection Location:Lower Mount, 3 o'clock, 9 o'clock, 12 o'clock
Gauge: Accuracy:±2%
Gauge: Ingress Protection:IP 65
Gauge: Window:Laminated Safety Glass, Flat Instrument Glass, Acrylic (PMMA)
Specifications
| Wika 733.02 | |
|---|---|
| Scale Range | [BBC] 0 bar...0.6 bar or [BBD] 0 bar...1 bar or [BBE] 0 bar...1.6 bar or [BBF] 0 bar...2.5 bar or [BBG] 0 bar...4 bar or [BBH] 0 bar...6 bar or [BBI] 0 bar...10 bar or [BBK] 0 bar...16 bar or [BBL] 0 bar...25 bar or [BBM] 0 bar...40 bar or [BBN] 0 bar...60 bar or [BBO] 0 bar...100 bar or [BBP] 0 bar...160 bar or [BBQ] 0 bar...250 bar or [BBS] 0 bar...400 bar or [BBT] 0 bar...600 bar or [BBU] 0 bar...1000 bar |
| Process Connection | [GD] G 1/2 B or [ND] 1/2 NPT or [GB] G 1/4 B or [NB] 1/4 NPT or [GC] G 3/8 B or [MI] M20 x 1.5 |
| Display | [5] Differential Pressure or [4] Duplex w/Two Pointers or [3] Subtracting |
| Movement | [A] Copper Alloy or [B] Stainless Steel |
| Mounting Flange / Bracket | [Z] Without or [C] Rear Flange, Stainless Steel or [M] Front Flange, Stainless Steel or [L] Front Flange, SS, for Alarm Contact Gauges |
| Window | [H] Laminated Safety Glass or [G] Flat Instrument Glass or [A] Acrylic (PMMA) |
| Restrictor | [ZZ-ZZZZ] Without or [RZ-ZZZZ] SS, Orifice 0.3 mm (0.012 in) or [QZ-ZZZZ] SS, D 0.6 |
| Case Type | [V3I] Without Blow-Out Disc on Top or [T3I] Blow-Out Disc Back |
| Case Filling | [J] Glycerin or [G] Glycerin-Water Mixture or [D] Silicone, 50 cSt or [V] Prepared for Filling |
| Thread Protection | [ZZ2] Without or [1Z2] With Thread Protection |
| Connector Location | [UMO] Lower Mount or [EMO] 3 O'Clock or [GMO] 9 O'Clock or [DMO] 12 O'Clock |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Electric Arm Contact | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Accuracy Class | [3] Class 1.6 |
| Ingress Protection | [I] IP 65 |
| Tags & Labels | [Z] Without |
| Packing | [2] Single Packing |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Model | 733.02 |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | bar |
| Gauge: Process Connection Size | G 1/2 B, 1/2 NPT, G 1/4 B, 1/4 NPT, G 3/8 B, M20 x 1.5 |
| Gauge: Process Connection Location | Lower Mount, 3 o'clock, 9 o'clock, 12 o'clock |
| Gauge: Accuracy | ±2% |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Window | Laminated Safety Glass, Flat Instrument Glass, Acrylic (PMMA) |
