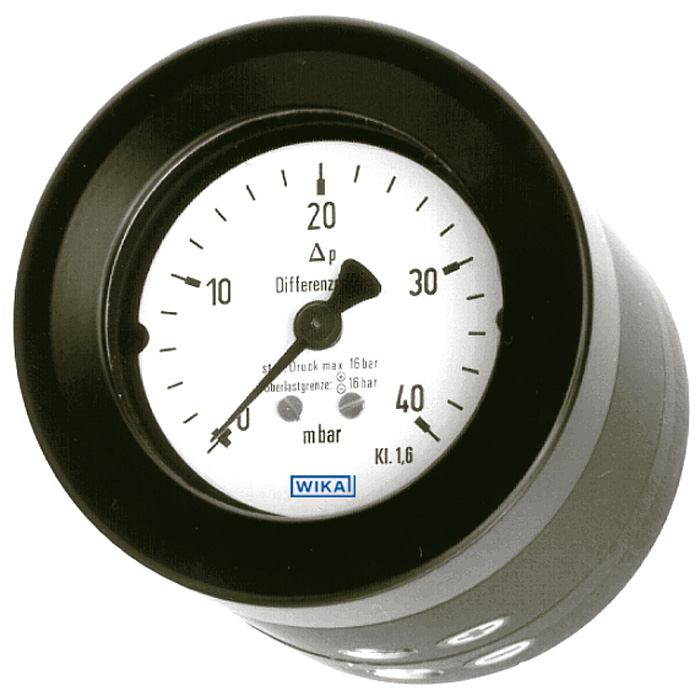

Wika 716.05 Series 3" Compact Differential Pressure Gauge, Calibrated Spring Membrane
Manufacturer: Wika Instrument Lp
Mfg Product Code:
716.05 3" Compact Diff Press Gauge
The Wika 716.05 Series 3" Compact Differential Pressure Gauge, available at Branom Instrument Co., is an excellent choice for measuring differential pressures at points with very low differential pressures and high one-sided or reciprocal overload. It is suitable for transparent, clean, non-sticky, non-aggressive media and excels in controlling ventilator and blast pressures, filter monitoring in ventilation and heating systems, and level measurement in closed vessels.
This gauge features differential pressure measuring ranges from 0 to 16 mbar, ensuring precision in various applications. It boasts a high working pressure and high overload safety up to 16 bar, guaranteeing reliable performance under demanding conditions. With numerous options for installation, connection form, and connection location, this gauge is adaptable to a wide range of setups.
Designed with a nominal size of 80 mm, the compact differential pressure gauge model 716.05 is perfect for measuring points requiring accurate differential pressure measurements with low differential pressures. The gauge offers overload safety of up to 16 bar on either side, making it highly reliable. Available accuracy classes of 2.5% and 4% allow for different scale ranges, accommodating differential pressures from 0 to 16 mbar and 0 to 600 mbar.
The differential pressure gauge provides a variety of connection options and panel mounting, making it versatile for many applications, including level measurement. Branom Instrument Co. is your best source for this high-quality gauge, offering unparalleled selection and expertise. Trust Branom to meet all your differential pressure measurement needs with the Wika 716.05 Series.
Order Code Prefix: 716.05-D-
Wika 716.05 Series 3" Compact Differential Pressure Gauge, Calibrated Spring Membrane
716.05 3" Compact Diff Press Gauge
Nominal Size:3"
Certificates:[Z] Without
Approvals:[Z] Without
Additional Ordering Info:[Z] Without
Pressure Gauge Standard:[U] US-Standard
Logo Options:[ZZZZZ] Without
Manufacturer Logo:[2] *Wika®*
Serial Number:[2] With Serial Number
Stop Pin on Dial:[2] At 6 O'Clock
Text for Dial:[Z] Without
Gauge: Brand:Wika
Gauge: Model:716.05
Gauge: Dial Size:3 in (76 mm & 80 mm)
Gauge: Scale Range:≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar)
Gauge: Pressure Type:Differential Pressure
Gauge: Measuring Principle:Other
Gauge: Fill Type:Dry
Gauge: Product Unit of Measure:mbar, kPa, mmH2O, inH2O
Gauge: Process Connection Size:G 1/8 Female, G 1/4 B
Gauge: Process Connection Location:Lower Mount, Back Mount, Side-by-Side (+L/-R), Side-by-Side (+R/-L)
Gauge: Process Connection Type:2-Way (2 x)
Gauge: Wetted Material:Stainless Steel
Gauge: Accuracy:±3%, ±4%
Gauge: Case Material:Aluminum
Specifications
| Wika 716.05 | |
|---|---|
| Scale Range | ￭ mbar ￭ or [MG116] 0/16 mbar or [MG125] 0/25 mbar or [MG140] 0/40 mbar or [MG160] 0/60 mbar or [MG210] 0/100 mbar or [MG216] 0/160 mbar or [MG225] 0/250 mbar or [MG240] 0/400 mbar or [MG260] 0/600 mbar |
| 2nd Scale | [Z] Without or [M] mbar or [L] kPa or [2] mmH2O or [7] inH2O |
| Process Connection | [AE] 2 x G 1/8 Female or [AG] 2 x G 1/8 B or [AL] 2 x G 1/4 B |
| Connector Location | [U] Lower Mount or [A] Back Mount or [M] + Right / - Left or [Y] + Left / - Right |
| Max Static Pressure | [H] 16 bar or [I] 25 bar |
| Mounting Flange / Bracket | [Z-ZZZU] Without or [B-ZZZU] Rear Flange, Black Steel or [D-ZZZU] Front Flange, Black Steel or [X-ZZZU] Narrow Panel Ring w/Mounting Device |
| Color for Inner Scale | [ZZZZZZ222Z] Without or [CZZZZZ222Z] Red or [AZZZZZ222Z] Black |
| Nominal Size | 3" |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] Without |
| Manufacturer Logo | [2] *Wika®* |
| Serial Number | [2] With Serial Number |
| Stop Pin on Dial | [2] At 6 O'Clock |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Model | 716.05 |
| Gauge: Dial Size | 3 in (76 mm & 80 mm) |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Measuring Principle | Other |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | mbar, kPa, mmH2O, inH2O |
| Gauge: Process Connection Size | G 1/8 Female, G 1/4 B |
| Gauge: Process Connection Location | Lower Mount, Back Mount, Side-by-Side (+L/-R), Side-by-Side (+R/-L) |
| Gauge: Process Connection Type | 2-Way (2 x) |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±3%, ±4% |
| Gauge: Case Material | Aluminum |
