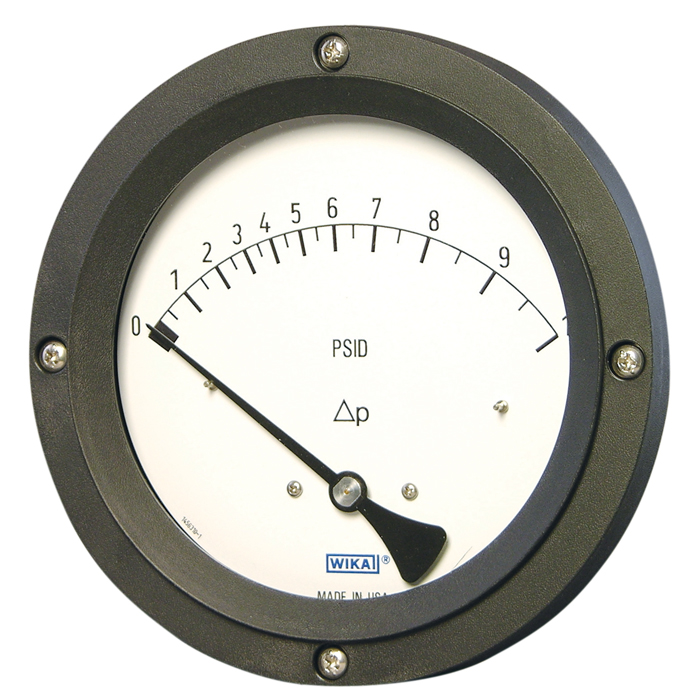

Wika 70x.04 Series 2.5" or 4" Thermoplastic Differential Pressure Gauge w/Magnetic Piston Sensing Element, Dry/Fillable, SS or Aluminum Wetted Parts
Manufacturer: Wika Instrument Lp
Mfg Product Code:
70x.04 Differential Press Gauge w/Mag Piston Sensing Elem
The Wika 70x.04 Series Differential Pressure Gauge offers exceptional accuracy for applications requiring the measurement of pressure differences across a system. This gauge is specifically designed to handle high static process pressures, making it ideal for industrial uses where monitoring pressure drops is critical.
The 70x.04 Series utilizes a magnetic piston sensing element, renowned for its reliability and smooth operation. Encased in a rugged thermoplastic housing, this gauge is built to withstand the rigors of demanding environments. An additional benefit is the field-fillable option, allowing for customization to match specific process requirements.
With a maximum working pressure of 6000 psig (400 barg), the 70x.04 Series tackles even the most challenging applications. The gauge boasts a wide range of differential pressure measurement capabilities, reaching up to 100 PSID (7 bar). This versatility makes it suitable for monitoring pressure drops across various equipment, such as filters, strainers, and separators.
For dependable measurement of differential pressure in high-pressure environments, the Wika 70x.04 Series is the perfect solution. When you need top-tier industrial gauges, look no further than Branom, your trusted supplier for reliable measurement tools.
Wika 70x.04 Series 2.5" or 4" Thermoplastic Differential Pressure Gauge w/Magnetic Piston Sensing Element, Dry/Fillable, SS or Aluminum Wetted Parts
70x.04 Differential Press Gauge w/Mag Piston Sensing Elem
Certificates:[Z] Without
Additional Ordering Info:[Z] Without
Dial:[AB] Aluminum, White, w/Stop-Pin
Serial Number on Dial:[1] Serial Number *...*
Color for Outer Scale:[A] Black
Dial Background:[1] White
Mark Color:[Z] Without
Arcs / Segments:[Z] Without
Text / Mark on Dial:[Z] Without
Logo Options:[ZZZZZZZ]
Manufacturer Logo:[A]
Stop Pin on Dial:[5] At Zero and Full Scale
Additional Mark:[Z] Without
Norm-Mark on Dial:[W] *Assembled in USA*
Gauge: Brand:Wika
Gauge: Model:700.04, 703.04, 700.04, 703.04
Gauge: Dial Size:4-1/2 in (110 & 115 mm), 2-1/2 in (63 mm & 68 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Differential Pressure
Gauge: Measuring Principle:Other
Gauge: Fill Type:Liquid Filled / Fillable
Gauge: Product Unit of Measure:psi, bard
Gauge: Process Connection Size:1/4 NPT Female, 1/2 NPT Female
Gauge: Process Connection Location:2 x Back Entry, In-Line, End Connection
Gauge: Process Connection Type:2-Way (2 x)
Gauge: Wetted Material:Anondized Aluminum, Stainless Steel
Gauge: Accuracy:±2%
Gauge: Case Material:Thermoplastic, Fiberglass Reinforced
Gauge: Window:Acrylic (PMMA), Laminated Safety Glass
Gauge: Dial Material:Aluminum, White
Gauge: Pointer Material:Plastic, Black
Specifications
| Wika 70x.04 | |
|---|---|
| Case Filling | [700.04] Without or [703.04] With |
| Nominal Size | [F] 4.5" or [C] 2.5" |
| Scale Range | ￭ psi ￭ or [PG235] 5 psid or [PG269] 10 psid or [PG310] 15 psid or [PG314] 20 psid or [PG317] 25 psid or [PG321] 30 psid or [PG335] 50 psid or [PG341] 60 psid or [PG352] 75 psid or [PG369] 100 psid or ￭ bard ￭ or [BG310] 1 bard or [BG314] 1.4 bard or [BG317] 1.7 bard or [BG320] 2 bard or [BG335] 3.5 bard or [BG340] 4 bard or [BG350] 5 bard or [BG370] 7 bard |
| 2nd Scale | [Z] Without or [P] psid or [B] bard or [L] kpad |
| Process Connection | [AH] 2 x 1/4 NPT Female or [AK] 2 x 1/2 NPT Female |
| Connector Location | [7] 2 x Back Entry or [K] In-Line, End Connection |
| Additional Mounting Device | [Z] Without or [B] Mounting Kit for Surface or Pipe Mounting, Stainless Steel |
| Window | [A] Acrylic (PMMA) or [H] Laminated Safety Glass (2.5") or [H] Laminated Safety Glass (4.5") |
| Set / Drag Pointer | [Z] Without or [K] Adjustable Red Maximum Drag Pointer (2.5") or [K] Adjustable Red Maximum Drag Pointer (4.5") |
| Alarm Contacts | [Z-ZZ] Without or [6-ZZ] 2 x SPDT Reed Contact 851.3 5W |
| Case Filling | [1] Prepared For Filling or [A] Glycerine or [P] Silicone, 1000 cSt or [9] Silicone Oil, 350 cSt |
| Measuring System | [H-AB1A] Anondized Aluminum or [3-AB1A] Stainless Steel |
| Color for Inner Scale | [Z1] Without or [C1] Red or [A1] Black |
| Text / Mark on Dial | [DZZZZZZZZZA5ZW] Δp or [ZZZZZZZZZZA5ZW] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Dial | [AB] Aluminum, White, w/Stop-Pin |
| Serial Number on Dial | [1] Serial Number *...* |
| Color for Outer Scale | [A] Black |
| Dial Background | [1] White |
| Mark Color | [Z] Without |
| Arcs / Segments | [Z] Without |
| Text / Mark on Dial | [Z] Without |
| Logo Options | [ZZZZZZZ] |
| Manufacturer Logo | [A] |
| Stop Pin on Dial | [5] At Zero and Full Scale |
| Additional Mark | [Z] Without |
| Norm-Mark on Dial | [W] *Assembled in USA* |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Model | 700.04, 703.04, 700.04, 703.04 |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm), 2-1/2 in (63 mm & 68 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Measuring Principle | Other |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi, bard |
| Gauge: Process Connection Size | 1/4 NPT Female, 1/2 NPT Female |
| Gauge: Process Connection Location | 2 x Back Entry, In-Line, End Connection |
| Gauge: Process Connection Type | 2-Way (2 x) |
| Gauge: Wetted Material | Anondized Aluminum, Stainless Steel |
| Gauge: Accuracy | ±2% |
| Gauge: Case Material | Thermoplastic, Fiberglass Reinforced |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass |
| Gauge: Dial Material | Aluminum, White |
| Gauge: Pointer Material | Plastic, Black |
