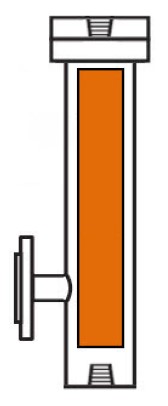

Gems Mini SureSite CM-2-T11/.5"-S1-B2/.5"-99.844-102-PP1----

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1108917

Weight: 12.0 lb(s)

Technical Specifications

Specific Gravity: .85
Float Material: Mini Float, 316SS, .85 SG
Max. Pressure: 10
Operating Temp.: 90
Mounting Type: Type CM
Housing Float Material: 316SS
Housing Type: 1-1/4" Tubing
Connection Code T: (T11) Removable Flange w/1/2" FNPT
Connection Code Sa: (S1) No Connection
Connection Code Sb: (S4) 1/2" 150# RF ANSI Flange
Connection Code b: (B2) Welded Cap w/1/2" FNPT
Flag Type: Plastic Flags
Media Type: Diesel

Dimensional Specifications
Indicating Length: 99.844"
C to C Length: 102"
Critical Dimension: C to C Length
