1. Products
  2. Mechanical floats
  3. XT-800 Series XT800-3-BR-SS-1-11-68200-J-H---collars
Public Pricelist (v2)
Representative photo. Please check item description for details.

XT-800 Series XT800-3-BR-SS-1-11-68200-J-H---collars

https://www.branom.com/web/image/product.template/545075/image_1920?unique=e617ea0
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1105843

Weight: 0.01 lb(s)

On Hand: 0

Technical Specifications
Model: XT-800
Specific Gravity: .85
Max. Pressure: 15
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 110
Stem Material: Brass
Mounting Type: (3) 2" NPT
Termination: Junction Box
Output: 4 - 20mA
Float Material: 316 Stainless Steel
Float Type: 316 Stainless Steel (156490)
Media Type: Diesel
Float Stops: Collars

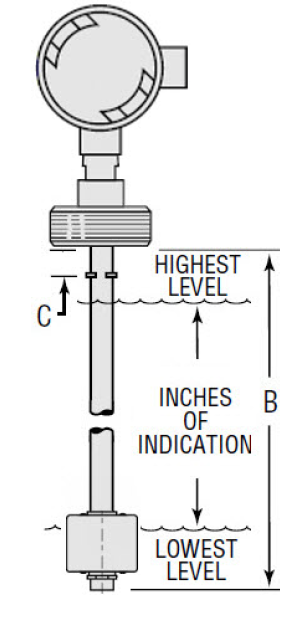

Dimensional Specifications
Indicating Length: 11"
C Dimension: 1"
Overall Length(B Dimension): 14.062


$ 1,128.07 1128.07 USD $ 1,128.07

$ 1,128.07

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    XT-800 Series XT800-3-BR-SS-1-11-68200-J-H---collars

      $ 1,128.07 1128.07 USD $ 1,128.07

      $ 1,128.07

      Not Available For Sale

      This combination does not exist.

      Technical Specifications
      Model: XT-800
      Specific Gravity: .85
      Max. Pressure: 15
      Stem Length: Up to 72"
      Stem Construction: Tubing (for units < 72")
      Operating Temp.: 110
      Stem Material: Brass
      Mounting Type: (3) 2" NPT
      Termination: Junction Box
      Output: 4 - 20mA
      Float Material: 316 Stainless Steel
      Float Type: 316 Stainless Steel (156490)
      Media Type: Diesel
      Float Stops: Collars

      Dimensional Specifications
      Indicating Length: 11"
      C Dimension: 1"
      Overall Length(B Dimension): 14.062
