Gems LS-800 (LS-800-4-CS-BN-SPST-100-GR1-2)

https://www.branom.com/web/image/product.template/544520/image_1920?unique=dc5de8c
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1103959

Weight: 0.01 lb(s)

On Hand: 0

Series: Standard LS-800
Specific Gravity: 1
Max. Pressure: 150

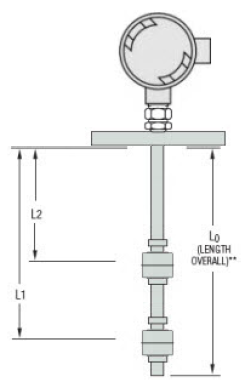

Stem Length: 6"-36"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 180
Stem Material: Carbon Steel/Stainless Steel
Mounting Type: (4) 3" 150# Flange
Switch Type: SPST, 100VA
Wiring Group: Group 1 - Common Return
Number of Levels: 2
Electrical Connection: Cable
Float Material: Buna N
Float Type: Buna N (10558)
Media Type: Water
Float Stops: Grip Rings


$ 1,107.94 1107.94 USD $ 1,107.94

$ 1,107.94

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Gems LS-800 (LS-800-4-CS-BN-SPST-100-GR1-2)

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum

$ 1,107.94 1107.94 USD $ 1,107.94

$ 1,107.94

Not Available For Sale

This combination does not exist.

Series: Standard LS-800
Specific Gravity: 1
Max. Pressure: 150
Stem Length: 6"-36"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 180
Stem Material: Carbon Steel/Stainless Steel
Mounting Type: (4) 3" 150# Flange
Switch Type: SPST, 100VA
Wiring Group: Group 1 - Common Return
Number of Levels: 2
Electrical Connection: Cable
Float Material: Buna N
Float Type: Buna N (10558)
Media Type: Water
Float Stops: Grip Rings

Measurement Maximum:0
Process Connection Type:ASME B16.5 300#
Measurement Minimum:0

Specifications

Measurement Maximum 0
Process Connection Type ASME B16.5 300#
Measurement Minimum 0
