LS-700 LEVEL SWITCH LS-700-3C-SS-PP-SPST-020-GR2-2

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1101077

Weight: 0.01 lb(s)

Technical Specifications
Specific Gravity: .78
Max. Pressure: 0
Operating Temp.: 20
Stem Material: 316 SS
Series: Standard LS-700
Mounting Type: (3C) 1" NPT w/1/2" Conduit Connection
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
Electrical Connection: 1/2" Conduit Connector w/ Leadwire
float_type: Polypropylene (145730)
Float Material: Polypropylene
Media Type Other: acetonitrile
Float Stops: Grip Rings

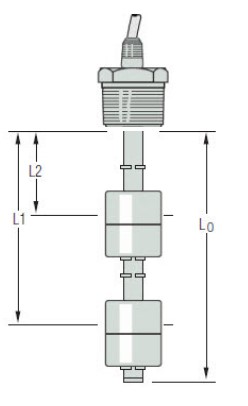

Dimensional Specifications
L2: 14" NC
L1: 17.5" NO
L0: 18.375"
Lead Length: 12"
