1. Products
  2. Single & Multi-Point Level Switches
  3. LS-700 Level Switch LS-700-2C-SS-SS-SPST-020-GR2-2
Public Pricelist (v2)
Representative photo. Please check item description for details.

LS-700 Level Switch LS-700-2C-SS-SS-SPST-020-GR2-2

https://www.branom.com/web/image/product.template/542218/image_1920?unique=026380d
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1098069

Weight: 8.0 lb(s)

On Hand: 0

Technical Specifications
Specific Gravity: 1.3
Max. Pressure: 0
Operating Temp.: 160
Stem Material: 316 SS
Series: Standard LS-700
Mounting Type: (2C) 3/4" NPT w/1/2" Conduit Connection
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
Electrical Connection: Nema 4 Junction Box
float_type: 316 SS (158369)
Float Material: 316 SS
Media Type Other: Lime Mud
Float Stops: Grip Rings

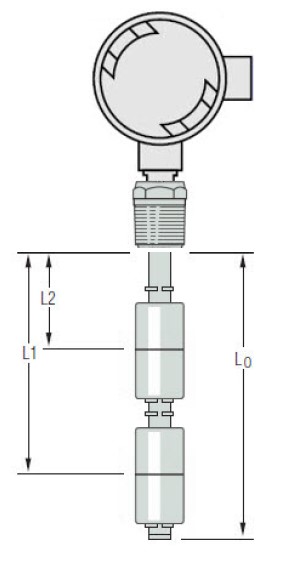

Dimensional Specifications
L2: 24" NC
L1: 29" NC
L0: 30.625"


$ 1,043.38 1043.38 USD $ 1,043.38

$ 1,043.38

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    LS-700 Level Switch LS-700-2C-SS-SS-SPST-020-GR2-2

      $ 1,043.38 1043.38 USD $ 1,043.38

      $ 1,043.38

      Not Available For Sale

      This combination does not exist.

      Technical Specifications
      Specific Gravity: 1.3
      Max. Pressure: 0
      Operating Temp.: 160
      Stem Material: 316 SS
      Series: Standard LS-700
      Mounting Type: (2C) 3/4" NPT w/1/2" Conduit Connection
      Switch Type: SPST, 20VA
      Wiring Group: Group 2 - Independent Return
      Number of Levels: 2
      Electrical Connection: Nema 4 Junction Box
      float_type: 316 SS (158369)
      Float Material: 316 SS
      Media Type Other: Lime Mud
      Float Stops: Grip Rings

      Dimensional Specifications
      L2: 24" NC
      L1: 29" NC
      L0: 30.625"
