LS-700 Series, TH-700-4-SS-SS-SPST-020-GR2-2

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1096493

Weight: 0.01 lb(s)

Technical Specifications
Specific Gravity: .87
Max. Pressure: 5
Operating Temp.: 150
Stem Material: 316 SS
Series: LS-700 w/ Temperature Switch
Mounting Type: (4) 3-5/8" Dia. Flange
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
Electrical Connection: Leadwire
float_type: 316 SS (141750)
Float Material: 316 SS
Media Type Other: Hydraulic Fluid
Temperature Switch #1: 150F (open on rise)
Float Stops: Grip Rings

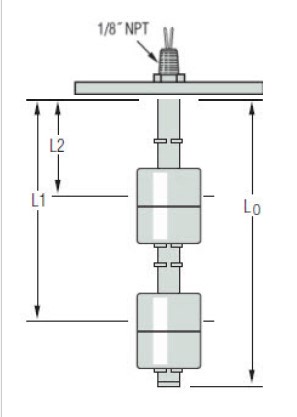

Dimensional Specifications
L2: 18.25" NO
L1: 22.25" NO
L0: 24.500"
Lead Length: 12"
