LS-300 Series Level Switch, LS-300-22-1-BNA-100-GR2-2-T

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1096302

Weight: 0.01 lb(s)

Technical Specifications
Specific Gravity: .85
Max. Pressure: 50
Operating Temp.: 72
Mounting Type: (22) 1" NPT
Switch Type: SPST, 100VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
Electrical Connection: Leadwire
Float Material: Buna N
Float Type: Buna N (39049)
Media Type: Chevron 46 Bearing Oil
Mounting Direction: Top Mounted

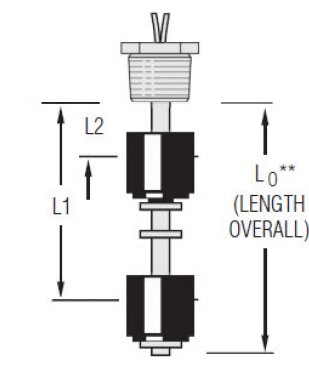

Dimensional Specifications
L2: 2.125" NO
L1: 7" NC
L0: 8.188"
Lead Length: 24"
