  3. LS-700 Level Switch (LS-700-4C-SS-SS-SPST-020-GR1-4)
Public Pricelist (v2)
Representative photo. Please check item description for details.

LS-700 Level Switch (LS-700-4C-SS-SS-SPST-020-GR1-4)

https://www.branom.com/web/image/product.template/541361/image_1920?unique=30edb17
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1095744

Weight: 0.01 lb(s)

On Hand: 0

Technical Specifications
Specific Gravity: 1.0
Max. Pressure: 20
Operating Temp.: 212
Stem Material: 316 SS
Series: Standard LS-700
Mounting Type: (4C) 3-5/8" Dia. Flange w/1/2" Conduit
Connection
Switch Type: SPST, 20VA
Wiring Group: Group 1 - Common Return
Number of Levels: 4
Electrical Connection: Nema 4 Junction Box
float_type: 316 SS (60241)
Float Material: 316 SS
Media Type Water: Water
Float Stops: Grip Rings

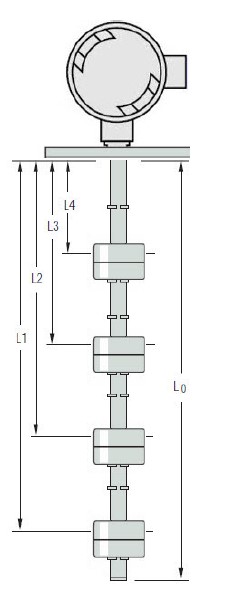

Dimensional Specifications
L4: 2" NO
L3: 4" NO
L2: 6" NO
L1: 16" NO
L0: 17.125"


$ 1,154.03 1154.03 USD $ 1,154.03

$ 1,154.03

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    LS-700 Level Switch (LS-700-4C-SS-SS-SPST-020-GR1-4)

      $ 1,154.03 1154.03 USD $ 1,154.03

      $ 1,154.03

      Not Available For Sale

      This combination does not exist.

      Technical Specifications
      Specific Gravity: 1.0
      Max. Pressure: 20
      Operating Temp.: 212
      Stem Material: 316 SS
      Series: Standard LS-700
      Mounting Type: (4C) 3-5/8" Dia. Flange w/1/2" Conduit
      Connection
      Switch Type: SPST, 20VA
      Wiring Group: Group 1 - Common Return
      Number of Levels: 4
      Electrical Connection: Nema 4 Junction Box
      float_type: 316 SS (60241)
      Float Material: 316 SS
      Media Type Water: Water
      Float Stops: Grip Rings
      Dimensional Specifications
      L4: 2" NO
      L3: 4" NO
      L2: 6" NO
      L1: 16" NO
      L0: 17.125"
