Model LS-800, LS-800-1-SS-SS-SPDT-020-GR4-3

https://www.branom.com/web/image/product.template/532831/image_1920?unique=bdf8690
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1083194

Weight: 1.75 lb(s)

On Hand: 0

Technical Specifications
Specific Gravity: 1.0
Max. Pressure: 5
Stem Length: 1.5" - 36"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 60
Stem Material: 316 Stainless Steel
Mounting Type: (1) 1/2" NPT
Switch Type: SPDT, 20VA
Wiring Group: Group 4 - Independent Return
Number of Levels: 3
Electrical Connection: 24" Leadwire
Float Material: 316 Stainless Steel
Float Type: 316 SS (14569)
Media Type: Water
Float Stops: Collars
Model Description: LS-800-1-SS-SS-SPST-100-GR4-3

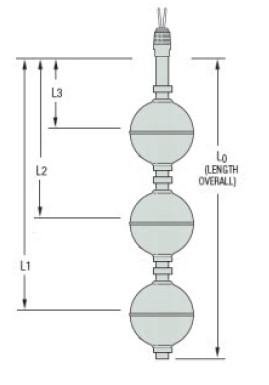

Dimensional Specifications
L3: 8" NO
L2: 11" NO
L1: 18" NO
L0: 20.000"


$ 1,032.17 1032.17 USD $ 1,032.17

$ 1,032.17

Not Available For Sale

  • Measurement Maximum
  • Process Connection Size
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Model LS-800, LS-800-1-SS-SS-SPDT-020-GR4-3

  • Measurement Maximum
  • Process Connection Size
  • Measurement Minimum

$ 1,032.17 1032.17 USD $ 1,032.17

$ 1,032.17

Not Available For Sale

This combination does not exist.

Technical Specifications
Specific Gravity: 1.0
Max. Pressure: 5
Stem Length: 1.5" - 36"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 60
Stem Material: 316 Stainless Steel
Mounting Type: (1) 1/2" NPT
Switch Type: SPDT, 20VA
Wiring Group: Group 4 - Independent Return
Number of Levels: 3
Electrical Connection: 24" Leadwire
Float Material: 316 Stainless Steel
Float Type: 316 SS (14569)
Media Type: Water
Float Stops: Collars
Model Description: LS-800-1-SS-SS-SPST-100-GR4-3
Dimensional Specifications
L3: 8" NO
L2: 11" NO
L1: 18" NO
L0: 20.000"

Measurement Maximum:0
Process Connection Size:1-1/2"
Measurement Minimum:0

Specifications

Measurement Maximum 0
Process Connection Size 1-1/2"
Measurement Minimum 0
