  3. XT-800 CONTINUOUS LEVEL SENSOR, 4-20mA, 2-1/2" SANITARY FLANGE, XT800-6-SS-SS-4-34-61200-J-H---rings
Public Pricelist (v2)
Representative photo. Please check item description for details.

XT-800 CONTINUOUS LEVEL SENSOR, 4-20mA, 2-1/2" SANITARY FLANGE, XT800-6-SS-SS-4-34-61200-J-H---rings

https://www.branom.com/web/image/product.template/193899/image_1920?unique=25a1fc2
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: W1061611

Weight: 12.0 lb(s)

On Hand: 0

Specific Gravity: 0.865
Max. Pressure: 15
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 200
Stem Material: 316 Stainless Steel
Mounting Type: (6) 2-1/2" Sanitary Flange
Termination: Junction Box
Output: 4 - 20mA
Float Material: 316 Stainless Steel
Float Type: 316 Stainless Steel (156490)
Media Type: Oil
Float Stops: Grip Rings
Ordering Information
Part Number: W1061611
Lead Time: 30-35 Business Days
Min. Order Quantity: 1
Shipping Weight: 11.4 lbs.
Model Description: XT800-6-SS-SS-4-34-61200-J-H---rings

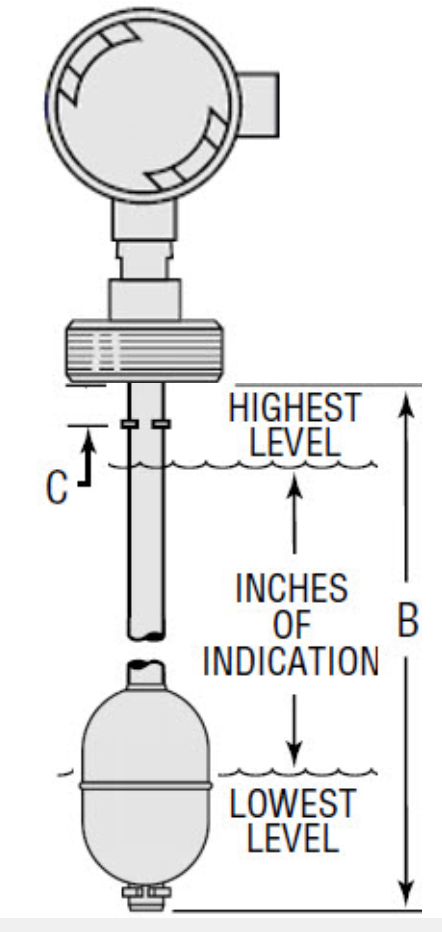

Dimensional Specifications
Indicating Length: 34"
C Dimension: 4"
Overall Length(B Dimension): 40.062

  • Measurement Maximum
  • Process Connection Location
  • Measurement Minimum

This combination does not exist.

Contact Us

XT-800 CONTINUOUS LEVEL SENSOR, 4-20mA, 2-1/2" SANITARY FLANGE, XT800-6-SS-SS-4-34-61200-J-H---rings

  • Measurement Maximum
  • Process Connection Location
  • Measurement Minimum

$ 1,341.37 1341.3700000000001 USD $ 1,341.37

$ 1,341.37

Not Available For Sale

This combination does not exist.

Specific Gravity: 0.865
Max. Pressure: 15
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 200
Stem Material: 316 Stainless Steel
Mounting Type: (6) 2-1/2" Sanitary Flange
Termination: Junction Box
Output: 4 - 20mA
Float Material: 316 Stainless Steel
Float Type: 316 Stainless Steel (156490)
Media Type: Oil
Float Stops: Grip Rings
Ordering Information
Part Number: W1061611
Lead Time: 30-35 Business Days
Min. Order Quantity: 1
Shipping Weight: 11.4 lbs.
Model Description: XT800-6-SS-SS-4-34-61200-J-H---rings
Dimensional Specifications
Indicating Length: 34"
C Dimension: 4"
Overall Length(B Dimension): 40.062

Measurement Maximum:0
Process Connection Location:Top
Measurement Minimum:0

Specifications

Measurement Maximum 0
Process Connection Location Top
Measurement Minimum 0
