GEMS CONTINUOUS LEVEL SENSOR XT- XT800-2-SS-BN-.5-14.5-89900-J-H---rings800
Manufacturer: Setra Systems LLC (dba Gems Sensors)
Mfg Product Code: W1061409
Weight: 10.0 lb(s)
Specific Gravity: .86
Max. Pressure: 15
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 200
Stem Material: 316 Stainless Steel
Mounting Type: (2) 1-1/4" NPT
Termination: Junction Box
Output: 4 - 20mA
Float Material: Buna N
Float Type: Buna N (164255)
Media Type: hydraulic oil
Float Stops: Grip Rings
Ordering Information
Part Number: W1061409

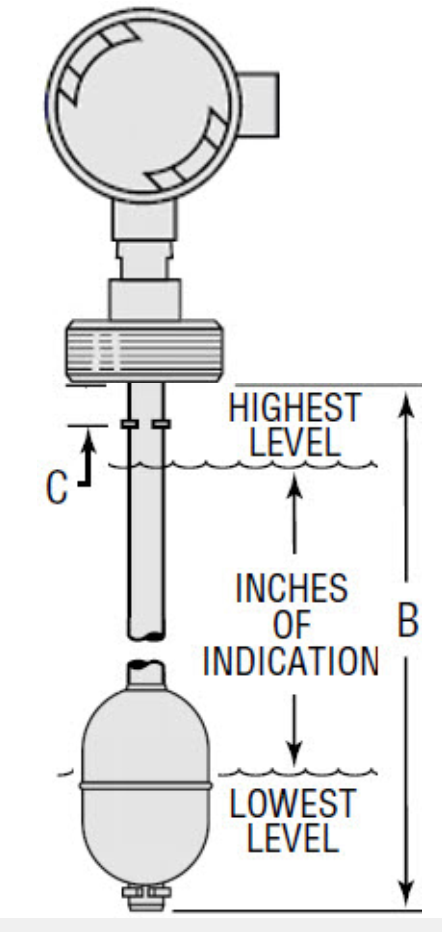

Dimensional Specifications
Indicating Length: 14.5"
C Dimension: .5"
Overall Length(B Dimension): 17
Lead Time: 30-35 Business Days
Min. Order Quantity: 1
Shipping Weight: 9.4 lbs.
Model Description: XT800-2-
GEMS CONTINUOUS LEVEL SENSOR XT- XT800-2-SS-BN-.5-14.5-89900-J-H---rings800
Specific Gravity: .86
Max. Pressure: 15
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 200
Stem Material: 316 Stainless Steel
Mounting Type: (2) 1-1/4" NPT
Termination: Junction Box
Output: 4 - 20mA
Float Material: Buna N
Float Type: Buna N (164255)
Media Type: hydraulic oil
Float Stops: Grip Rings
Ordering Information
Part Number: W1061409
Dimensional Specifications
Indicating Length: 14.5"
C Dimension: .5"
Overall Length(B Dimension): 17
Lead Time: 30-35 Business Days
Min. Order Quantity: 1
Shipping Weight: 9.4 lbs.
Model Description: XT800-2-
Measurement Maximum:0
Process Connection Location:Top
Measurement Minimum:0
Specifications
| Measurement Maximum | 0 |
| Process Connection Location | Top |
| Measurement Minimum | 0 |
