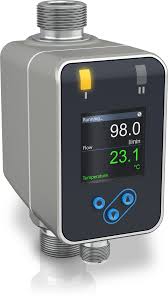

AF-E 400, Magnetic Flow Meter, 1/2"NPT, 1-555 gph, IO-Link

Manufacturer: Krohne Inc

Mfg Product Code: VNAH4620150T030000100110000000

Weight: 5.0 lb(s)

[VNAH4] Electromagnetic Flow Sensor AF-E 400
[6] Nominal Diameter: DN 15 | 1/2"
[20] Process Connection: 1/2" NPT, inside thread
[15] System Design: Compact w/ M12 Cable Connection
[0T0] Mounting Material: without flex hose bracket
[30] Housing Material: 316L SS w/ grounding clamp
[000] Cable: without
[100] Gasket Material: FKM/FPM
[1] Communication: I/O: Multi (4-20mA, Pulse, Switch, I/O-Link)
[10000000] Units: SI/US, set to US

Electromagnetic flowmeter for utilities and industrial automation

Flow measurement of conductive liquids, e.g. coolants, cold/hot water, chemicals, etc. Best-in class temperature range, accuracy, pressure drop and flow range

Ultra-compact design for parallel installation and tight spaces

4…20 mA, pulse, frequency, Modbus, IO-Link

Meter size DN 15|1/2"

Measuring range 1...555 gal/h

Connection/grounding NPT threaded, internal

Stainless Steel 1.4404|316L

Code basic sensor VNAH4620150T020000100110000000

Overall dimension 110 mm

1 x M12 connector

including display

Communication Multi I/O (4-Pins)

switching signal / analogue signal /

pulse signal / IO-link (configurable)

Mounting material without

Quickstart language EN / DE / FR

Medium wetted parts Stainless Steel 1.4404|316L /

PEEK / Carbon / FKM

Electrodes Carbon

Housing Stainless steel 1.4408|316 group

Product temperature -20...+90°C|-4...+194°F.

Operating pressure max. 16 bar

including grounding clamp

Protection class IP 65/67 acc. EN 60529

Cable (signal) Compact - without

Cable length Compact - none

Revision 0

Commodity code 90261021

Country of origin Germany
