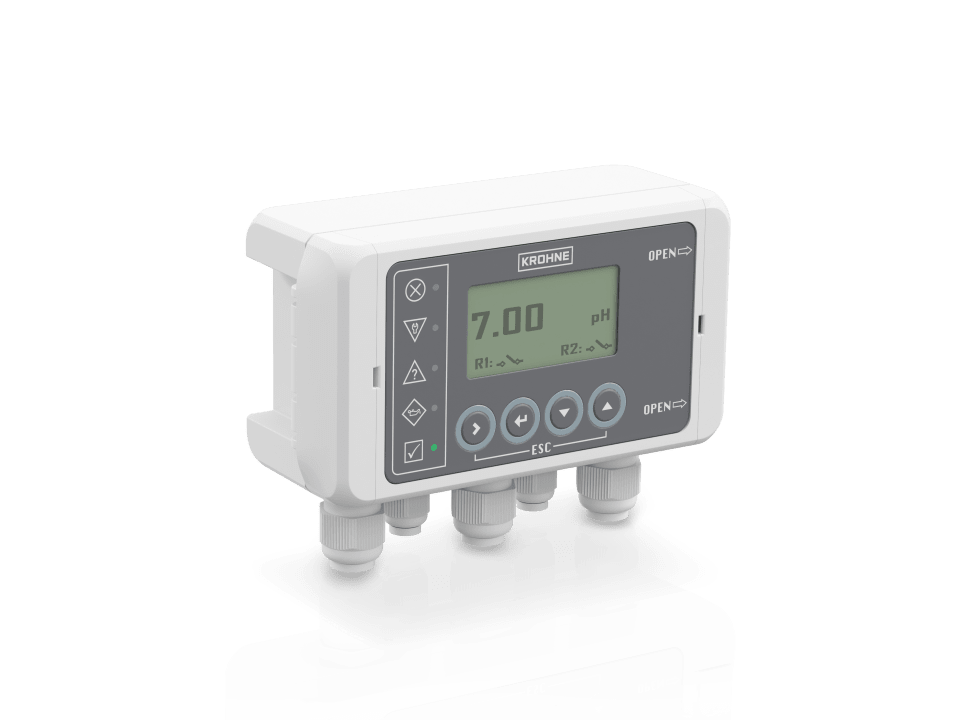

Model SHD 200 Control unit for 4…20 mA/HART® field devices

Manufacturer: Krohne Inc

Mfg Product Code: VGSH411110011100

Weight: 1.5 lb(s)

LC Display 256 x 128 Pixel, 4 push buttons for operator control. IP66/IP67, -4...+158F, Altitude 6,561ft AMSL, 20-30VDC Input Powered @ 75mA.
VGSH41 - SHD 200 Control Unit
1 - Field Housing
1 - Polycarbonate Housing
1 - Wall Mounting Set for Plastic Housing
0 - Options = None
0 - Approvals = None
1 - Current Ouputs = 1 x additional current outputs
2 - Relays = 2 x configurable relays
1 - External Hart Adapter
0 - Operation Language = English
0 - Documentation = None

Features:

• Second 4…20 mA output for any HART® variable
• 2 configurable relays for status output, system alarm or limit switch
• Status signalisation by 5 LEDs according to NAMUR NE 107
• User-configurable measurement pages for all 4…20 mA and HART® signals incl. trend graph and summary page

Specifications:

LC Display 256 x 128 Pixel, 4 push buttons for operator control.  IP66/IP67, -4...+158F, Altitude 6,561ft AMSL, 20-30VDC Input Powered @ 75mA.

VGSH41 - SHD 200 Control Unit

1 - Field Housing

1 - Polycarbonate Housing

1 - Wall Mounting Set for Plastic Housing

0 - Options = None

0 - Approvals = None

1 - Current Ouputs = 1 x additional current outputs

2 - Relays = 2 x configurable relays

1 - External Hart Adapter

0 - Operation Language = English

0 - Documentation = None
