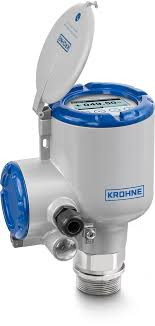

KROHNE Optiwave 7500 C, 80 GHz Non-contact Radar Level Meter FMCW for Liquids, XP-IS/DIP CL I/II/III DIV 1, 3/4" NPT Mount, Plug-in Display w/ Cover
Manufacturer: Krohne Inc
Mfg Product Code: VFDF403B0021C410110EA0000
Weight: 9.25 lb(s)
Ex Approvals: cQPSus XP-IS/DIP CL I DIV 1
Aluminum housing, IP66/IP68 0.1 barg
Outputs: 2-wire / 4...20mA passive HART®
Cable Entry / Cable Gland: 1/2 NPT / 1 x stainless steel / without
Display: Plug-in display (cover with window)
Process Conditions / Process Seal: -14.5 to 580 psig (-1 to 40 barg), -40 to 302°F, FKM/FPM
Antenna Type: Lens, DN 20 (3/4")
Antenna Extension: Without
Process Connection Type: ASME B1.20.1, Threaded, 3/4" NPT connection
Calibration Certificate: Without certificate, Accuracy ±2 mm (±0.08in)
Purging System: Without
