  3. VISI-FLOAT, 4" SCALE, 1-10 LPM AIR, WITH SS METAL WETTED PARTS
Public Pricelist (v2)

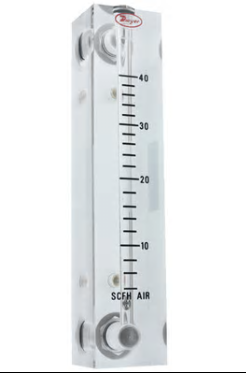

Representative photo. Please check item description for details.

VISI-FLOAT, 4" SCALE, 1-10 LPM AIR, WITH SS METAL WETTED PARTS

https://www.branom.com/web/image/product.template/510101/image_1920?unique=f6a9e15
(0 review)

Manufacturer: Dwyer Instruments Inc

Mfg Product Code: VFB-66-SS

Weight: 0.5 lb(s)

On Hand: 0

The Series VF Visi-Float® Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeters is backed by over 60 years of experience in acrylic instrument machining. This Series consists of 2" (51 mm) and 4" (102 mm) scales with optional precision metering valves.

  • Service: Compatible gases and liquids.
  • Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard, SS optional; Float: SS, black glass,
  • aluminum, K monel depending on range.
  • Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
  • Accuracy: VFA = 5% of FS; VFB = 3% of FS.
  • Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
  • Scale Length: VFA 2" typical length; VFB 4" typical length.
  • Mounting Orientation: Mount in vertical position.
  • Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
  • Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU
  • (RoHS II).

    • $ 76.35 76.35000000000001 USD $ 76.35

    $ 76.35

    Not Available For Sale

    • Process Connection Type
    • Process Connection Location
    • Case Material
    • Measurement Minimum

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    VISI-FLOAT, 4" SCALE, 1-10 LPM AIR, WITH SS METAL WETTED PARTS

    • Process Connection Type
    • Process Connection Location
    • Case Material
    • Measurement Minimum

    $ 76.35 76.35000000000001 USD $ 76.35

    $ 76.35

    Not Available For Sale

    This combination does not exist.

    Process Connection Type:NPT-Female
    Process Connection Location:Top & Bottom
    Case Material:Acrylic
    Measurement Minimum:1

    Specifications

    Process Connection Type NPT-Female
    Process Connection Location Top & Bottom
    Case Material Acrylic
    Measurement Minimum 1
