Turck Actuator and Sensor Cordset, Connection Cable (RS 12T-1)

Manufacturer: Turck Incorporated

Mfg Product Code: U-06722

Weight: 1.0 lb(s)

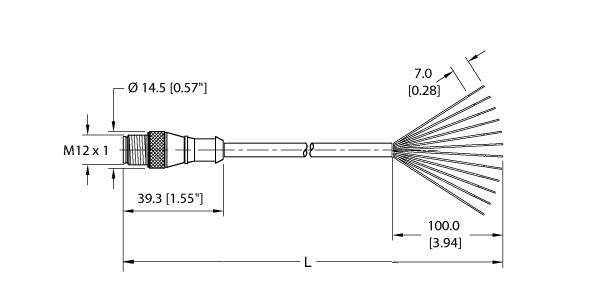

Connector A Male, M12 × 1, Straight, A-code
Design specification Acc. to IEC 61076-2-101
Number of contacts 12
Contacts Bronze, CuSn, Gold-plated
Contact carriers Plastic, Nylon or TPU, Black
Connector body Plastic, TPU, Yellow
Coupling nut Brass, CuZn, Nickel-plated
Tightening torque (range) 0.8 … 1 Nm
(note max. torque of mating connector!)
Mechanical life > 100 Mating cycles
Pollution degree 3
Protection class (When coupled) IP68, IP69K
NEMA: 1, 3, 4, 6P

Actuator and Sensor Cordset Features

• Connection Cable
• Cable length (L) 1 m
• M12
• Male
• Straight
• 12-pin
• IP68
• IP69K
• General Purpose Cable
• Gray PVC jacket
• 12X24 AWG
• -40 Cold Bend Rating
• Flame Ratings: UL1061
• CSA FT1
• Cable length: 1 m
