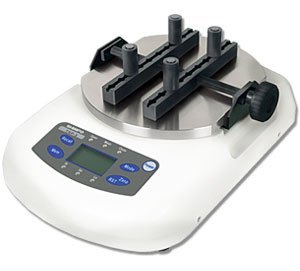

Shimpo 2 N-m (17.70 in-lb) Capacity Torque Meter

Manufacturer: Seals USA Inc aka Nidec Shimpo

Mfg Product Code: TNP-2

Weight: 5.0 lb(s)

2 N-m (17.70 in-lb) Capacity Torque Meter

The Series TNP Digital Torque Meter is a precision instrument for measuring OPEN and CLOSE torque values for various applications. The TNP

Torque Meter is used in medical, pharmaceutical, industrial quality control, R&D and countless other torque applications. As a cap torque analyzer, the TNP repeatedly determines bottle closure and breakaway torque. Its wide memory capacity is capable of storing 1,000 data points, including Average, Maximum and Minimum values. A HI-GO-LO LED comparator feature can be utilized for large batch testing to ensure overall product quality.

The TNP is a portable device powered with internal rechargeable batteries or through provided universal AC adapter/charger. Designed with a small footprint, it can easily be transferred between the shop floor and laboratory taking up little space when operating. The TNP Torque Meter comes standard with USB connection and cable for easy PC/Software interface. Combined with the free “DIGITORQ” Software, statistical testing, graphing and analysis can be performed.

Features

• Precise ± 0.5% F.S. accuracy ensures exact results
• Variety of applications met with ranges from 4.4 in•lb (50 N•cm) all the way to 88.5 in•lb (10 N•m)
• Quick & Easy set up with removable chuck pins that adjust test diameter size
• Memory function allows convenient storage of up to 1000 readings for later retrieval
• One touch operation enables quick reset for subsequent tests
• Large, easy to read LCD displays torque values in four selectable engineering units
• PC connectivity with USB interface and free DIGITORQ software enables data analysis and graphing on Microsoft® Excel
• Truly portable with compact, light-weight design and internal, rechargeable batteries
• Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use
• Selectable measuring modes enables capture of Average, Peak Opening or Peak Closing values in either clock-wise (CW) or counter clock-wise (CCW) directions
• Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances
• Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
