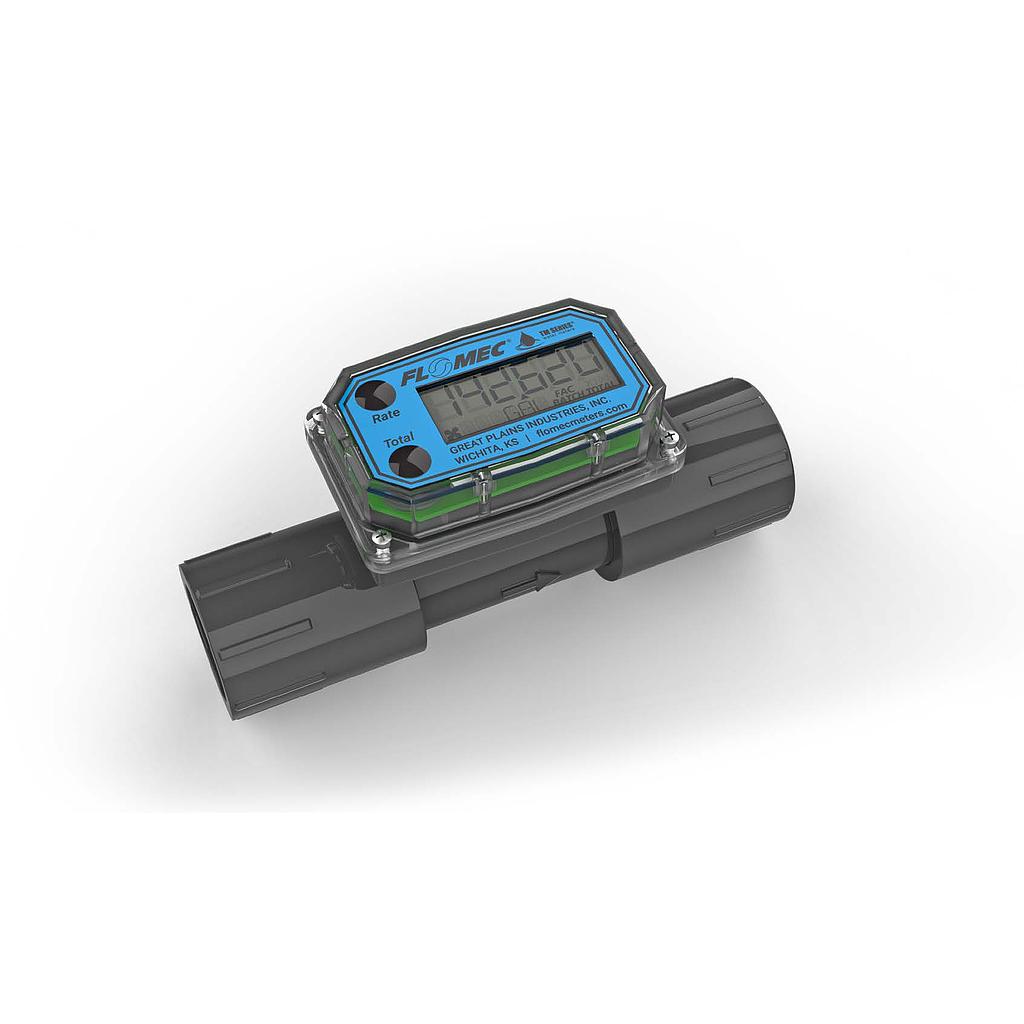

Flomec TM Series Q9 Retrofit / Replacement Display for 3" TM Series Flow Meters

Manufacturer: Great Plains Industries (GPI/Flomec)

Mfg Product Code: TM30XR9GMA

Weight: 0.01 lb(s)

WATER METER 3" COMPUTER RETRO ] – End User can change the from Gallon to Liter via Q9 Display (Liter default no longer offered)

Check out FLOMEC’s Q9 Retrofit Replacement Display for TM Series flow meter to see all the new efficient and time-saving features.

Features & Benefits

• Many Field Configurable options for ease of operation including diagnostic mode and custom unit name
• Maximum versatility with optional pre-configured plug-in daughterboards to supply 4-20mA and Scaled Pulse (sold separately)
• Convenient Battery Power Level indication with automatic low battery warning
• Ultimate ease of operation with permanent preprogrammed 5 point factory calibration in Gallons
• Accommodates a wide range of technical expertise with 3 Field calibration methods (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
• For simple Plug and Play installation, the Q9 is factory calibrated set to display Cumulative Total, ReSettable Batch Total, and Rate of Flow in several different unit and several different time bases (example: gallons per minute)
• 11 pre-programed engineering units and one user-configurable custom unit
• Three field calibration methods available (1 point Dispense Display, 5 point Correction Factor, 5 point K-Factor)
• Operates on two AAA batteries with approximately 2 years of operation
