Barksdale 96211 Compact Pressure Switch, Tamper Resistant, 110 to 500 psi, Brass, DIN #43650

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: T96211-BB6-T2

Weight: 1.0 lb(s)

Type : Pressure Switch
Series : 96211
Measuring Range : 130 to500 psi
Connection Size : 1/4 NPT
Switch Contact : SPDT
Electrical Rating : 22 Amp @ 125/250 VAC; 10 Amp @ 125/250 VAC; 5 Amp @ 30 VDC
Accuracy : 2 %
Temperature Rating : -20 to 165 deg F
Material : Buna N
Finish : Brass

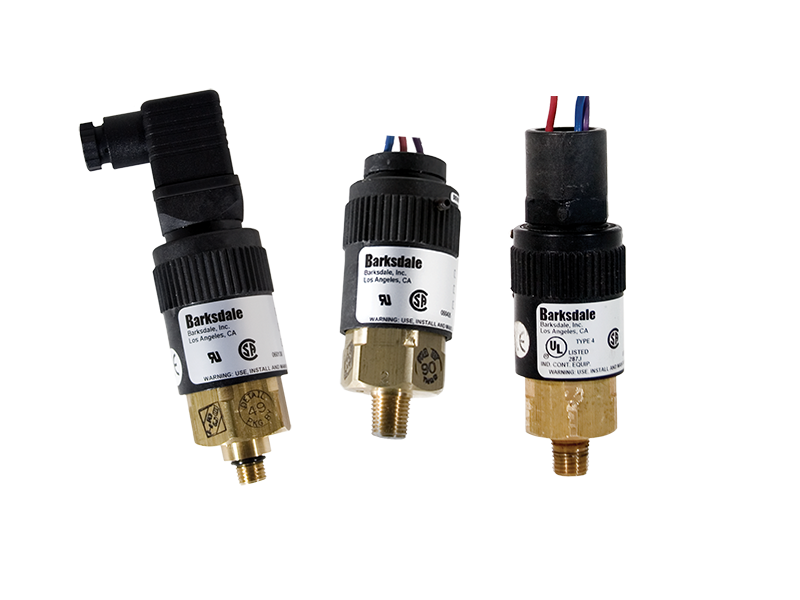

Barksdale Series 96201 Pressure Switches: Compact, Versatile, and Reliable Pressure Control

The Series 96201 Pressure Switches offer a compact and cost-effective solution for a wide range of pressure control applications, from vacuum to 7500 psi.

Key Features:

• Compact Design: Ideal for space-constrained applications.
• Versatility:
  • Available in a variety of materials, including plastic, brass, and stainless steel, to suit different applications.
  • Optional conduit connector for enhanced environmental protection (NEMA 4 rating).
  • Optional DIN electrical connector for easy installation and maintenance.
• High Performance:
  • Controls pressures from vacuum to 7500 psi, offering a wide operating range.
  • Single pole double throw (SPDT) snap-action switching for reliable performance.

Applications:

• Pump & compressor monitoring
• Air proving in HVAC systems
• Engine monitoring
• Machine tools
• Hydraulic power units
• Mobile hydraulics
• Medical equipment
• Irrigation systems
• General industrial applications
