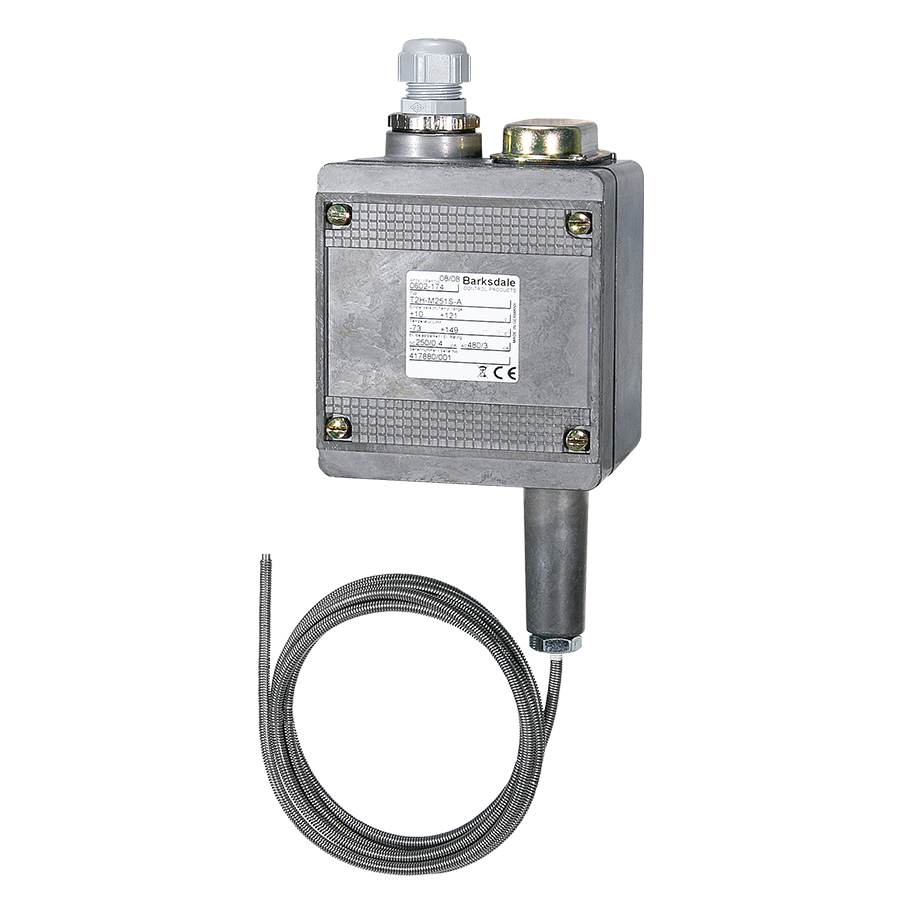

Barksdale Remote Mount Temperature Switch, Dual switch (2 SPDT), NEMA 4 Enclosure, -50/150F range, 6FT Capillary
Manufacturer: Barksdale Inc Dba Dynalco Controls Corp
Mfg Product Code: T2H-S154S
Weight: 2.0 lb(s)
On Hand: 0
This advanced dual mechanical temperature switch offers precise temperature control in demanding industrial environments. Featuring a remote sensor and explosion-proof housing, it ensures reliable operation in hazardous areas.
Key Features:
- Dual Switching Functionality:
- Two independent switching circuits (S1 and S2) for versatile control applications.
- Use S1 for maximum/minimum monitoring or sensor monitoring.
- Use S2 as a two-position controller with optional disconnection (RD-microswitch) for enhanced safety.
- Remote Sensor: Enables flexible installation and monitoring of temperatures in hard-to-reach locations.
- Easy Configuration: Terminal clip integrated and set point adjustment in °C and °F accessible under a tamper-protected cover.
- Robust Construction: Protection class IP65, NEMA 4 / 13 for enhanced durability and environmental protection.
- Enhanced Safety:
- Adjustable hysteresis (dead band) for improved accuracy and reduced cycling (S-microswitch).
- Suitable for SIL2 (IEC 61508) acceptance for safety-critical applications.
- Comprehensive Approvals: Ex ia, UL, and CSA certified for global use.
Applications:
- Industrial Applications: Precise temperature control in various industrial processes.
- Shipbuilding: Monitor critical temperatures in marine environments.
- Railcars: Monitor and control temperatures in railcar systems.
Barksdale Remote Mount Temperature Switch, Dual switch (2 SPDT), NEMA 4 Enclosure, -50/150F range, 6FT Capillary
Measurement Maximum:250.0
Process Connection Location:Bottom
Measurement Minimum:50
NEMA / UL:NEMA 4/13
Specifications
| Measurement Maximum | 250.0 |
| Process Connection Location | Bottom |
| Measurement Minimum | 50 |
| NEMA / UL | NEMA 4/13 |
