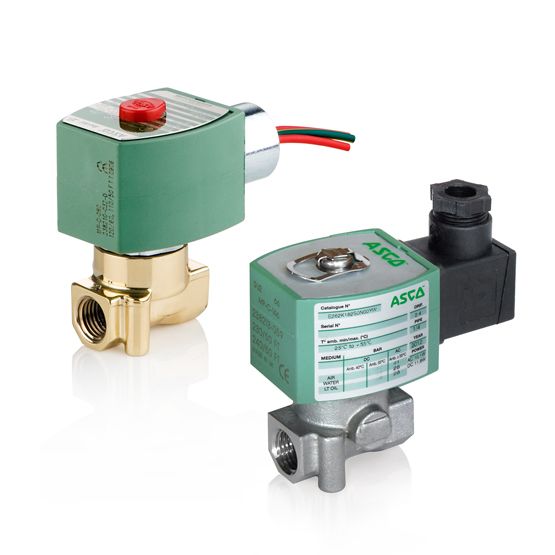

262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC, With Din Connection
Manufacturer: Asco LP
Mfg Product Code: SC8262H007AC120/60,110/50
Weight: 1.01 lb(s)
Solenoid Valve, 1/4" NPT, 120 VAC, 2 Way-2/2 NC
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 0.35 / 0.30
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 1.01 lbs
- Kit Number: 323583
- Coil Class: FT
- Coil Number: 238212-032
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 1/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Carton Note: 1/4 X 1/8 2NC ST.ST. 6.1/F AC
- Seating Elastomer: NBR
- Kit Number: 323583
- Product Weight: 1.01 lb:
262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC, With Din Connection
Solenoid Valve, 1/4" NPT, 120 VAC, 2 Way-2/2 NC
Valve: Actuation:Solenoid - Direct Acting
Brand_Name:Asco
Media:Air, Inert Gas, Light Oil, Water
Flow (Cv / Kv):0.35 / 0.30
Mounting Direction:Any
-Seating Elastomer:NBR
Process Connection Type:NPT
Flow Coefficient:0.35 Cv
Process Connection Size:1/4"
Input Voltage:120 VAC
Watts:6.1
Function:2 Way 2/2 Normally Closed
Coil Class:FT
Frequency:60 Hz
Body Material:SS
NEMA / UL:NEMA 1/2/3/3S/4/4X
Seal Material:NBR
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Media | Air, Inert Gas, Light Oil, Water |
| Flow (Cv / Kv) | 0.35 / 0.30 |
| Mounting Direction | Any |
| -Seating Elastomer | NBR |
| Process Connection Type | NPT |
| Flow Coefficient | 0.35 Cv |
| Process Connection Size | 1/4" |
| Input Voltage | 120 VAC |
| Watts | 6.1 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | FT |
| Frequency | 60 Hz |
| Body Material | SS |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
