1. Products
  2. Automated
  3. 262 Series 2-Way Solenoid Valve, 3/4" NPT, 240 VAC
Public Pricelist (v2)
Representative photo. Please check item description for details.

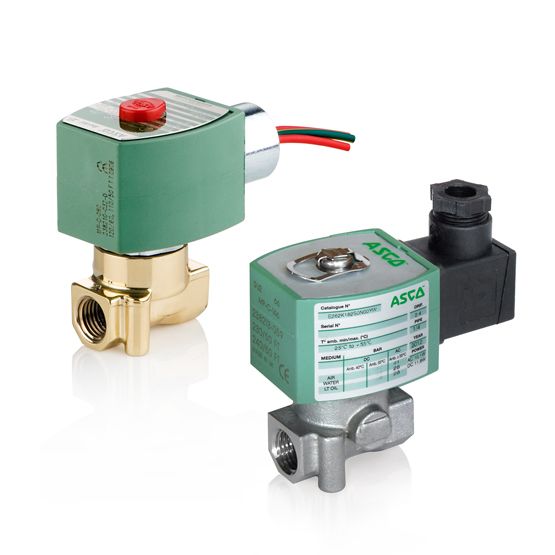

262 Series 2-Way Solenoid Valve, 3/4" NPT, 240 VAC

https://www.branom.com/web/image/product.template/472060/image_1920?unique=c5af3e3
(0 review)

Manufacturer: Asco LP

Mfg Product Code: S262SH02N3EG5

Weight: 3.97 lb(s)

On Hand: 0

The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.

  • Pipe/Port Type & Size: NPT 3/4
  • Valve Actuation: Solenoid
  • Product Weight: 3.97 lbs
  • Order Code: S262SH02N3EG5
  • Kit Number: NPTF
  • Item Status: Active
  • Lead Length: 18 inch
  • Voltage: 100 to 240 AC/DC Voltage Ranging; 110 AC; 115 AC; 12 DC; 12 to 24 DC Voltage Ranging; 120 AC; 120 DC; 125 DC Battery Charging; 208 AC; 220 AC; 230 AC; 24 AC; 24 DC; 24 to 120 AC/DC Volt - 50; 60
  • Operating Environment: Corrosive; Hazardous; Indoor; Outdoor
  • Standards / Regulations: Class I Div 1; Class I Div 2; Class II Div 1; Class II Div 2; CSA; Type 1; Type 2; Type 3; Type 3R; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL:

    • $ 547.18 547.1800000000001 USD $ 547.18

    $ 547.18

    Not Available For Sale

    • Mounting Direction
    • Process Connection Type
    • Max Operating Temperature
    • Process Connection Size
    • Wetted Material
    • Input Voltage
    • Lead Length
    • NEMA / UL

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    262 Series 2-Way Solenoid Valve, 3/4" NPT, 240 VAC

    • Mounting Direction
    • Process Connection Type
    • Max Operating Temperature
    • Process Connection Size
    • Wetted Material
    • Input Voltage
    • Lead Length
    • NEMA / UL

    $ 547.18 547.1800000000001 USD $ 547.18

    $ 547.18

    Not Available For Sale

    This combination does not exist.

    Mounting Direction:Any
    Process Connection Type:NPT
    Max Operating Temperature:140 °F
    Process Connection Size:3/4"
    Wetted Material:Stainless Steel
    Input Voltage:240 VAC
    Lead Length:18 in
    NEMA / UL:NEMA 1/2/3/3S/4/4X

    Specifications

    Mounting Direction Any
    Process Connection Type NPT
    Max Operating Temperature 140 °F
    Process Connection Size 3/4"
    Wetted Material Stainless Steel
    Input Voltage 240 VAC
    Lead Length 18 in
    NEMA / UL NEMA 1/2/3/3S/4/4X
