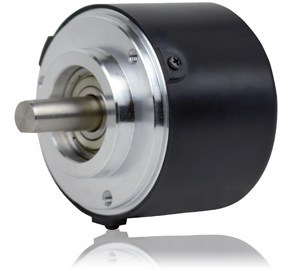

Shimpo Rotary Pulse Generator, 1000 PPR, Single Output

Manufacturer: Seals USA Inc aka Nidec Shimpo

Mfg Product Code: RE1B-1000F

Weight: 5.0 lb(s)

Rotary Pulse Generator, 1000 PPR, Single Output

Rotary Encoders available from 60 to 1000 ppr with 5000 rpm maximum capability. Quadrature versions available. RE Series Encoders are ideal for usage with SHIMPO’s Panel Mount Tachometers and Counters.

Features

• RE1B-60F: 60 digital output pulses per shaft revolution. Maximum speed: 5000 rpm.
• RE1B-600F: 600 digital output pulses per shaft revolution. Maximum speed: 5000 rpm.
• RE1B-1000F: 1000 digital output pulses per shaft revolution. Maximum speed: 5000 rpm.
• RE2B-30F: Dual (90° out of phase) digital pulses for quadrature applications. 30 pulses/rev. Maximum speed: 5000 rpm
• RE2B-600F: Dual (90° out of phase) digital pulses for quadrature applications. 600 pulses/rev. Maximum speed: 5000 rpm
