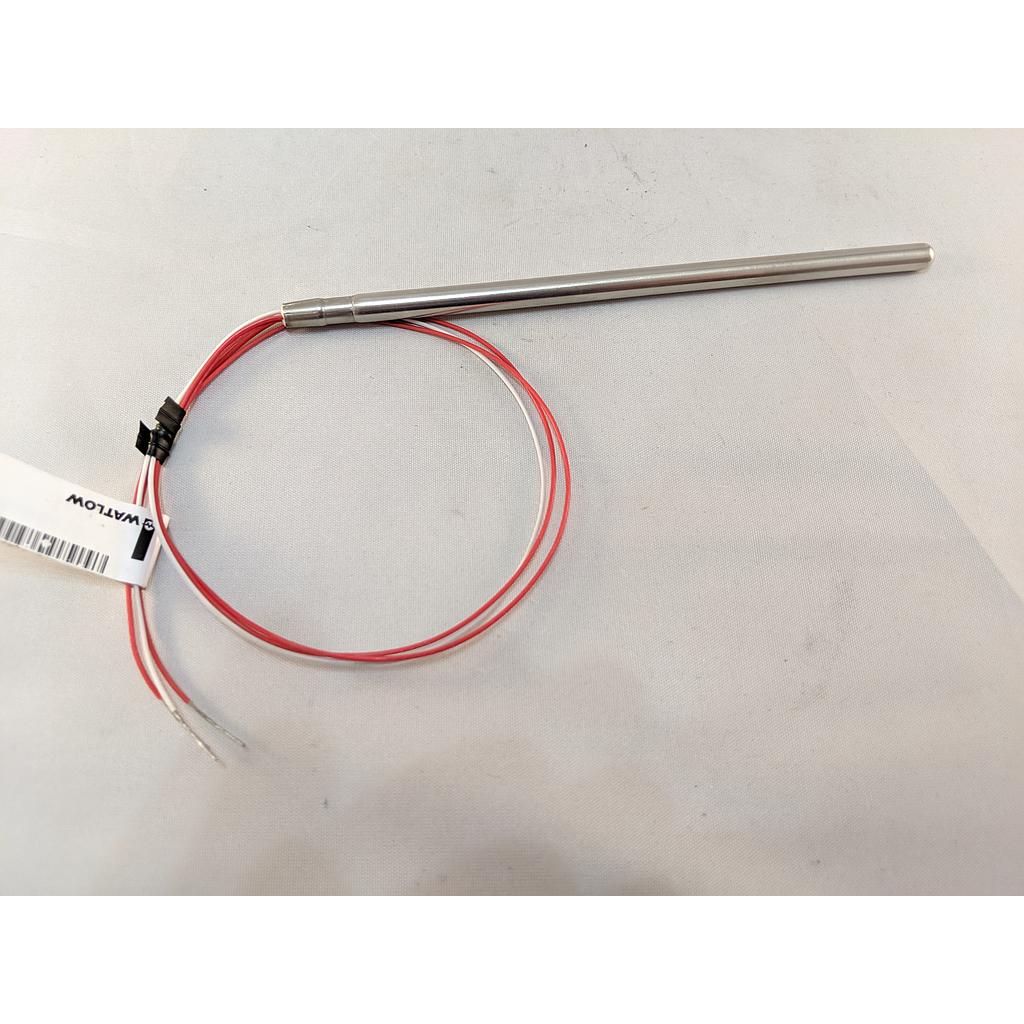

Representative photo. Please check item description for details.

Watlow RB Series 100 OHM 3-Wire RTD

https://www.branom.com/web/image/product.template/186465/image_1920?unique=d3c7a60
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: RB-2005903

Weight: 0.5 lb(s)

On Hand: 0

RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Bend 90 Degrees
Bend Radius .375"
Hot Leg Straight Length [in] (H) 5.000
Cold Leg Straight Length [in] (C) 2.000
Lead Wire Construction L - PFA_Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

  • Measurement Maximum
  • Measurement Minimum
  • Output Communication Protocol

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Watlow RB Series 100 OHM 3-Wire RTD

  • Measurement Maximum
  • Measurement Minimum
  • Output Communication Protocol

$ 121.65 121.65 USD $ 121.65

$ 121.65

Not Available For Sale

This combination does not exist.

RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Bend 90 Degrees
Bend Radius .375"
Hot Leg Straight Length [in] (H) 5.000
Cold Leg Straight Length [in] (C) 2.000
Lead Wire Construction L - PFA_Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

Measurement Maximum:500.0
Measurement Minimum:-58
Output Communication Protocol:RTD 3-wire

Specifications

Measurement Maximum 500.0
Measurement Minimum -58
Output Communication Protocol RTD 3-wire
