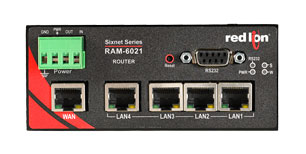

RAM-6021 Series Secure Industrial Router
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: RAM-6021
Weight: 1.7 lb(s)
RAM-6021 Secure Industrial Router
With a rugged design and flexible platform, the routers provide the ability to remotely connect, monitor and control assets across a variety of industrial applications. The RAM6021's web based event engine can be customized to trigger I/O or email alerts, to quickly notify personnel of critical events based on operational data. Add in robust security features, which include a stateful firewall, NAT translations and VPN connections, and the RAM-6021 delivers a compact all-in-one solution that seamlessly connects to existing Ethernet infrastructures, including networks with Modbus and DNP3 enabled devices.
Features
- LAN-to-LAN or LAN-to-WAN connectivity
- Built in security and routing protects against unwanted intrusion
- IPsec and SSL VPN tunnels
- Stateful firewall
- Port forwarding
- Packet filtering
- Access control list (ACL)
- Flexible all-in-one platform reduces system complexity
- NAT support for one-to-one or one-to-many translations
- DHCP server and DHCP relay
- Event engine to trigger I/O or send email alerts
- SNMP v1, v2, v3
- Dynamic DNS
- Modbus TCP/ASCII/RTU
- DNP3 – slave
- Syslog
- Built-in traffic capture for enhanced troubleshooting
- RAMQTT client for IIoT cloud connectivity
Ethernet Interface (10/100 Auto-Sensing)
- Five (5) RJ-45 type connectors
Mechanical
- Dimensions: 4.7” x 3.77” x 2.0” (120 x 96 x 51 mm)
- Weight: 1.2 lbs. (544 g)
Redundant Power Input
- 4-pin screw terminal
- Side mounted 2.5mm barrel connector
- 8-30 VDC (12 VDC nominal)
Environmental
- Operating temperature: -40° to +70°C
- Humidity: 5 to 95% non-condensing
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Certifications
- Product Safety
- Hazardous Locations: Class I, Div. 2, Groups A, B, C, D, ISA 12.12.01
RAM-6021 Series Secure Industrial Router
RAM-6021 Secure Industrial Router
Brand_Name:Red Lion
Manufacturer Product Family:RAM-6021 Series Routers
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Measurement Minimum:0
Input Voltage:8-30 VDC
Communication Protocol:Modbus TCP/ASCII/RTU
Humidity:5 - 95% NC
Standards:Shock: IEC60068-2-27, Vibration: IEC60068-2-6
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | RAM-6021 Series Routers |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Input Voltage | 8-30 VDC |
| Communication Protocol | Modbus TCP/ASCII/RTU |
| Humidity | 5 - 95% NC |
| Standards | Shock: IEC60068-2-27, Vibration: IEC60068-2-6 |
