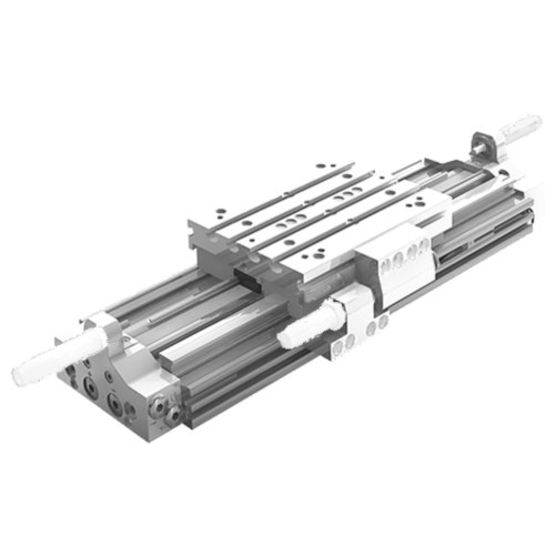

AVENTICS CKP Series Rodless Cylinder, M7, 800mm Stroke

Manufacturer: Asco LP

Mfg Product Code: R480163945

Weight: 12.15 lb(s)

Rodless Cylinder, M7, 800mm Stroke

The AVENTICS Series CKP cylinders provide sturdy, ultra-precise guiding with excellent repeatability and are ideal for applications requiring the movement of heavy loads in space-critical machine environments.

Features

• Piston Ø: 16 mm
• Stroke: 800 mm
• Ports: M7
• Functional principle: Double-acting
• Magnetic piston: with magnetic piston
• Guide: ball rail guide
• Easy2Combine: capable with connection kit
• Piston force: 127 N
• Pressure for determining piston forces: 6,3 bar
• Cushioning length: 20 mm
• Cushioning energy: 1.5 J
• Cushioning: Pneumatically
• Cushioning: adjustable
• Speed max.: 2 m/s
• Stroke max.: 1800 mm
• Working pressure min.: 3 bar
• Working pressure max: 8 bar
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 60 °C
• Min. medium temperature: -10 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air
• Max. particle size: 5 µm
• Weight: 5.51 kg
• Material front cover: Aluminum:
