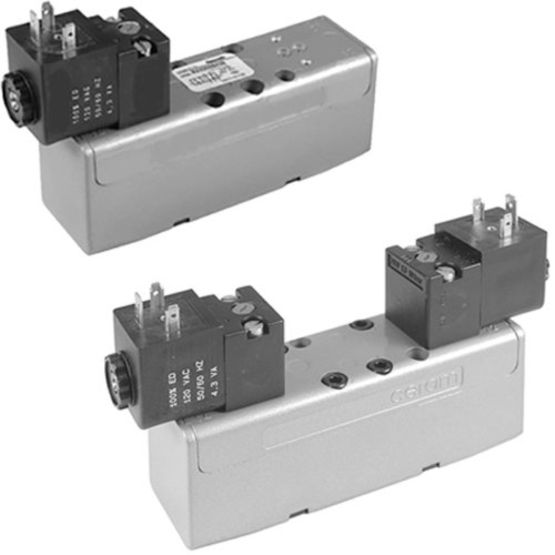

AVENTICS CERAM Series Directional Valve, 30 mm CNOMO, ISO 5599-1, 5/2 Directional Double Solenoid, Manual Override w/Detent

Manufacturer: Asco LP

Mfg Product Code: R432006474

Weight: 2.0 lb(s)

Dir Valve, 30 mm CNOMO, ISO 5599-1, 5/2 Dir Double Solenoid, Man O/R w/Detent

Features

• Activation: Electrically
• Nominal flow Qn: 1100 l/min
• Switching principle: 5/2, double solenoid
• Working pressure min.: 2 bar
• Working pressure max: 10.3 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Manual override: with detent, without detent
• Electrical connection type: Plug
• Electrical connection size: EN 175301-803, form A
• Actuating control: Double Solenoid
• Sealing principle: Ceramic
• Standards: ISO 5599-1
• Pilot valve width: 30 mm CNOMO
• Frame size: ISO 1
• Valve plug connector: Without valve plug connector
• Connection type: Plate connection
• Blocking principle: Single base plate principle
• Can be assembled into blocks: Can be assembled into blocks
• Control pressure min.: 2 bar
• Control pressure max.: 10.3 bar
• Min. ambient temperature: -15 °C
• Max. ambient temperature: 66 °C
• Min. medium temperature: -15 °C
• Max. medium temperature: 66 °C:
