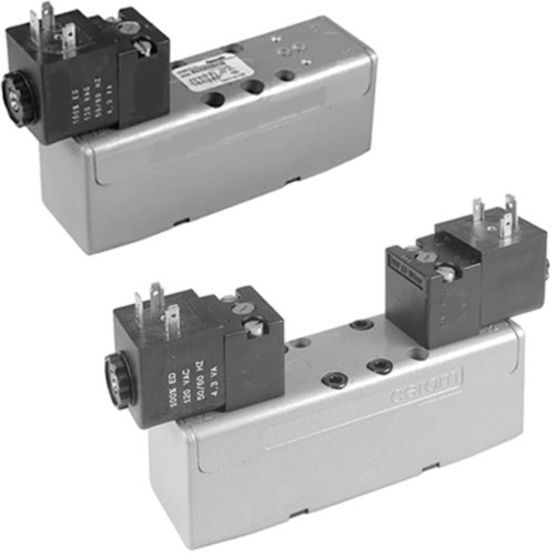

AVENTICS CERAM Series Directional Valve, 30 mm CNOMO, Internal Pilot, ISO 5599-1, 5/3 Directional Closed Center, Manual Override w/Detent

Manufacturer: Asco LP

Mfg Product Code: R432002443

Weight: 2.0 lb(s)

Dir Valve, 30 mm CNOMO, Internal Pilot, ISO 5599-1, 5/3 Dir Closed Center, Man O/R w/Detent

Features

• Activation: Electrically
• Nominal flow Qn: 2400 l/min
• Switching principle: 5/3, closed center
• Working pressure min.: 0 bar
• Working pressure max: 10.3 bar
• Manual override: with detent, without detent
• Actuating control: Double Solenoid
• Sealing principle: Ceramic
• Pilot: Internal
• Standards: ISO 5599-1
• Pilot valve width: 30 mm CNOMO
• Frame size: ISO 2
• basic valve with electrical connector: Basic valve without coil
• Valve plug connector: Without valve plug connector
• Connection type: Plate connection
• Blocking principle: Single base plate principle
• Can be assembled into blocks: Can be assembled into blocks
• Control pressure min.: 2 bar
• Control pressure max.: 10.3 bar
• Min. ambient temperature: -15 °C
• Max. ambient temperature: 66 °C
• Min. medium temperature: -15 °C
• Max. medium temperature: 66 °C
• Medium: Compressed air
• Standard compressed air connection: according to ISO 5599-1:
