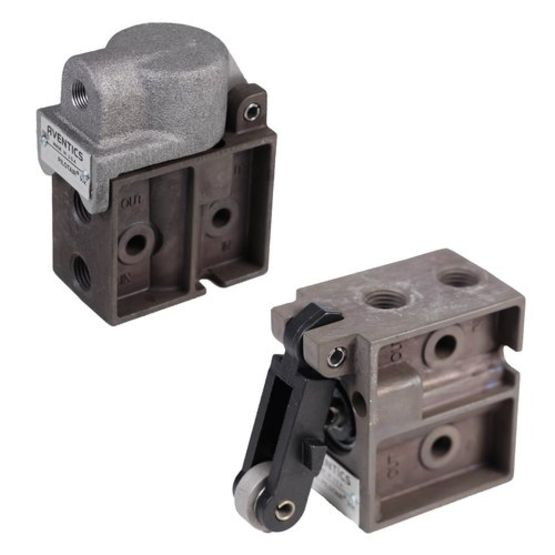

AVENTICS A-Pilotair Series Directional Valve, 1/4" NPTF, Die-Cast Aluminum, 2-HA-3

Manufacturer: Asco LP

Mfg Product Code: R431004513

Weight: 3.99 lb(s)

Directional Valve, 1/4" NPTF, Die-Cast Alum, 2-HA-3

Features

• Activation: Manual
• Nominal flow Qn: 1308.72 l/min
• Compressed air connection output: Ø 1/4″
• Working pressure min.: 0 bar
• Working pressure max: 13.7 bar
• Sealing principle: Soft Seal
• Type: Poppet valve
• Type: 2-HA-3
• Control pressure min.: 0 bar
• Control pressure max.: 17.2 bar
• Min. ambient temperature: -40 °C
• Max. ambient temperature: 71 °C
• Min. medium temperature: -40 °C
• Max. medium temperature: 71 °C
• Medium: Compressed air
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 1 mg/m³
• Max. particle size: 50 µm
• Compressed air connection input: Ø 1/4″
• Weight: 1.81 kg
• Housing material: Die-cast aluminum:
