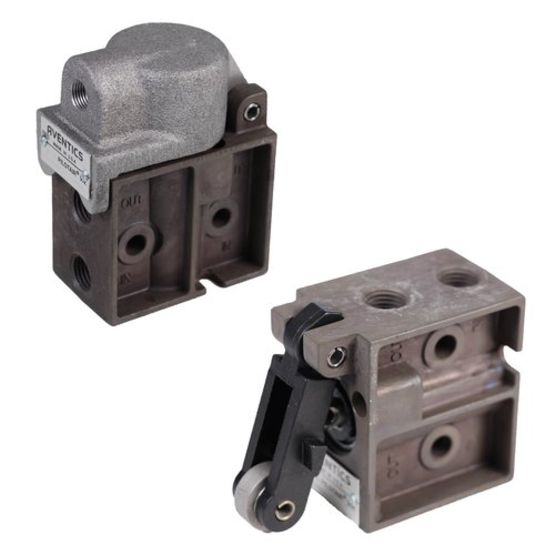

Representative photo. Please check item description for details.
AVENTICS A-Pilotair Series Directional Valve, 1/4" NPTF, Die-Cast Aluminum, 2-H-3
Manufacturer: Asco LP
Mfg Product Code: R431004510
Weight: 3.99 lb(s)
On Hand: 0
Directional Valve, 1/4" NPTF, Die-Cast Alum, 2-H-3
Features
- Activation: Manual
- Nominal flow Qn: 1308.72 l/min
- Compressed air connection output: Ø 1/4″
- Working pressure min.: 0 bar
- Working pressure max: 13.7 bar
- Sealing principle: Soft Seal
- Type: Poppet valve
- Type: 2-H-3
- Control pressure min.: 0 bar
- Control pressure max.: 17.2 bar
- Min. ambient temperature: -40 °C
- Max. ambient temperature: 71 °C
- Min. medium temperature: -40 °C
- Max. medium temperature: 71 °C
- Medium: Compressed air
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 1 mg/m³
- Max. particle size: 50 µm
- Compressed air connection input: Ø 1/4″
- Weight: 1.81 kg
- Housing material: Die-cast aluminum:
