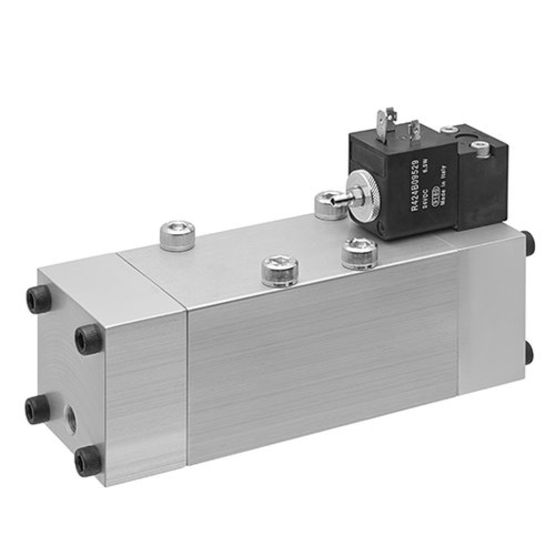

AVENTICS HV30 Series Directional Valve, 110 VAC/VDC, Polyphenylene

Manufacturer: Asco LP

Mfg Product Code: R424B13058

Weight: 0.4 lb(s)

AVENTICS HV30 Series Directional Valve, 110 VAC/VDC, Polyphenylene

The AVENTICS Series HV30 complies with the valve standard ISO 5599-1. Due to the level of flow and robustness, especially on high ambient temperatures, HV30 is the perfect valve for Aluminium applications.

Features

• Activation: Electrically
• Working pressure min.: 2 bar
• Working pressure max: 10 bar
• Operational voltage AC at 50 Hz: 110 V
• Operational voltage AC at 60 Hz: 110 V
• Frame size: ISO 3
• Min. ambient temperature: 10 °C
• Max. ambient temperature: 120 °C
• Min. medium temperature: 10 °C
• Max. medium temperature: 120 °C
• Medium: Compressed air
• Max. particle size: 5 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Holding power AC 50 Hz: 5 VA
• Holding power AC 60 Hz: 4.2 VA
• Duty cycle: 100 %
• Connector standard: CNOMO / NFE 49-003-1
• Protection class with connection: IP65
• Weight: 0.18 kg
• Housing material: polyphenylene sulfide
• Seal material: Fluorocaoutchouc:
