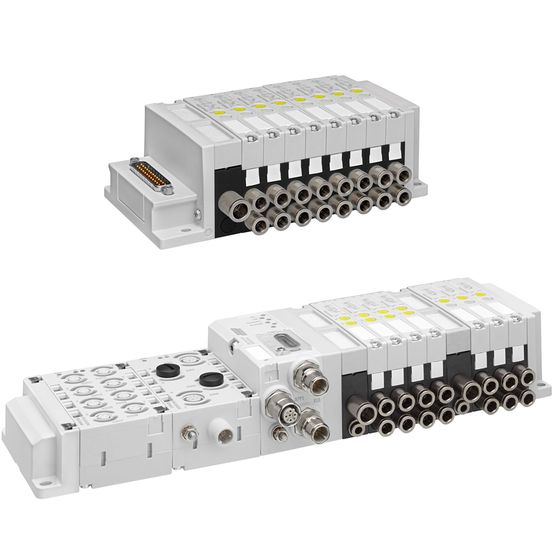

AVENTICS AV03 Series Valve System, Spool Valve, Positive Overlapping, 24 VDC, Manual Override w/Detent, 5/2

Manufacturer: Asco LP

Mfg Product Code: R422102424

Weight: 5.0 lb(s)

Valve System, Spool Valve, Pos Overlap, 24 VDC, Man. Override w/Detent, 5/2

The AVENTICS Series AV03/AV05 provide a reliable basis for both compact handling systems and complex automation solutions. Within machine safety the Series AV03/AV05 offers intelligent solutions that significantly reduce your effort in creating a safe design. With the integration of the fieldbus and I/O-modules of the Series AES, also all requirements for distributed control are available. The Series AV03/AV05 is easy to configure, easy to use and easy to extend as well as IIoT futureproof thanks to the integration of OPC UA and the Digital Twin.

Features

• Activation: Electrically
• Nominal flow Qn: 300 l/min
• Switching principle: 5/2
• Working pressure min.: -0.9 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Manual override: with detent
• Actuating control: Single Solenoid
• Sealing principle: Soft Seal
• Pilot: External
• Valve type: Spool valve, positive overlapping
• Connection type: Plate connection
• Return: with spring/air spring return
• Blocking principle: Base plate principle, multiple
• Control pressure min.: 3 bar
• Control pressure max.: 8 bar
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 60 °C
• Min. medium temperature: -10 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air
• Max. particle size: 40 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³:
