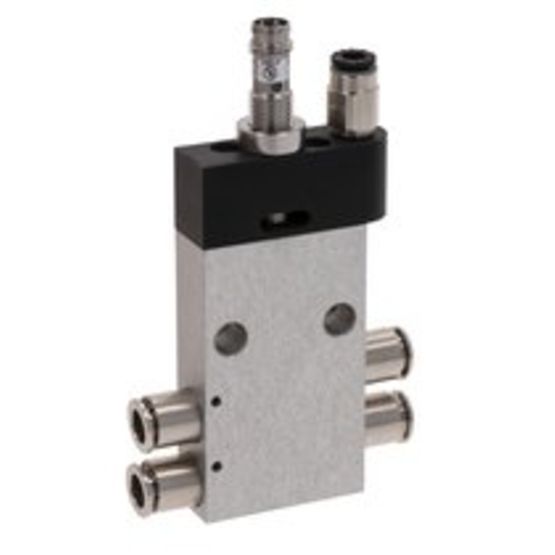

AVENTICS AV Series Shut-Off Module, Electric Spool Valve, Positive Overlapping, 10-30 VDC, Port 2/4 Ø 8

Manufacturer: Asco LP

Mfg Product Code: R422101517

Weight: 0.23 lb(s)

Shut-Off Module, Electric Spool Valve, Positive Overlapping, 10-30 VDC, Port 2/4 Ø 8

Features

• Activation: Electrically
• Control pressure min.: 3.5 bar
• Control pressure max.: 7 bar
• Operating voltage DC, min.: 10 V DC
• Operating voltage DC, max.: 30 V DC
• Type sensor: PNP
• Sensor connection: M8x1
• Voltage drop U at Imax: ≤ 2,5 V
• Protection class sensor: IP65
• Operational voltage pilot valve: 24 V DC
• Voltage tolerance DC: -10% / +10%
• Power consumption: 1.3 W
• Display: LED: Yellow
• Protection class pilot valve: IP67
• Compressed air connection type input: push-in fitting
• Nominal flow Qn: 400 l/min
• Type: Spool valve, positive overlapping
• Port 2 / 4: Ø 8
• Compressed air connection 12 (Exhaust): Ø 4
• Working pressure min.: 0 bar
• Working pressure max: 10 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 50 °C:
