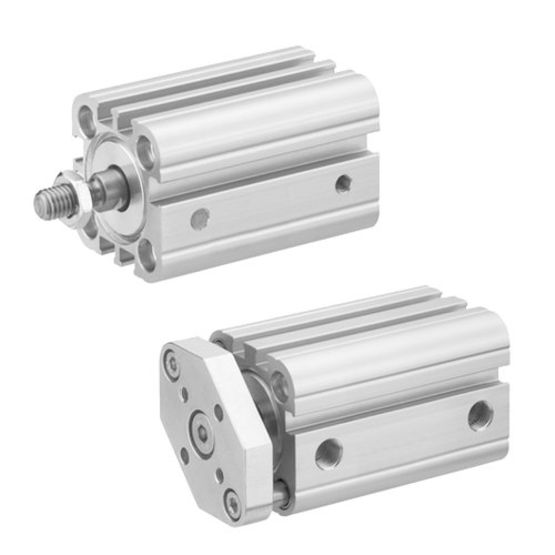

Representative photo. Please check item description for details.
AVENTICS CCI Series Compact Cylinder (ISO 21287), 25 mm⌀, M5 Thread, Double-Acting, Single Piston Rod
Manufacturer: Asco LP
Mfg Product Code: R422001014
Weight: 2.0 lb(s)
On Hand: 0
Compact Cylinder (ISO 21287), 25 mm⌀, M5 Thread, Double-Acting, Single Piston Rod
The AVENTICS Series CCI (ISO 21287) cylinders stand for innovative, compact construction and an easy to clean design. The Series CCI (ISO 21287) is ideal for long strokes and increased requirements for optimized cycle times and moving masses. The sensors can be installed quickly and easily on all sides and over the entire cylinder lengths.
Features
- Standards: ISO 21287
- Piston Ø: 25 mm
- Stroke: 10 mm
- Functional principle: Double-acting
- Cushioning: Elastic cushioning
- Magnetic piston: Piston with magnet
- Environmental requirements: Industry standard, ATEX optional
- Certificates: ATEX optional
- Piston rod: single
- Scraper: Standard industrial scraper
- Pressure for determining piston forces: 6,3 bar
- Retracting piston force: 260 N
- Extracting piston force: 309 N
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 80 °C
- Working pressure min.: 1 bar
- Working pressure max: 10 bar
- Ports: M5
- Piston rod thread: M6
- Impact energy: 0.3 J
- Weight 0 mm stroke: 0.123 kg
- Weight +10 mm stroke: 0.026 kg
- Stroke max.: 300 mm
- Medium: Compressed air
- Min. medium temperature: -20 °C:
