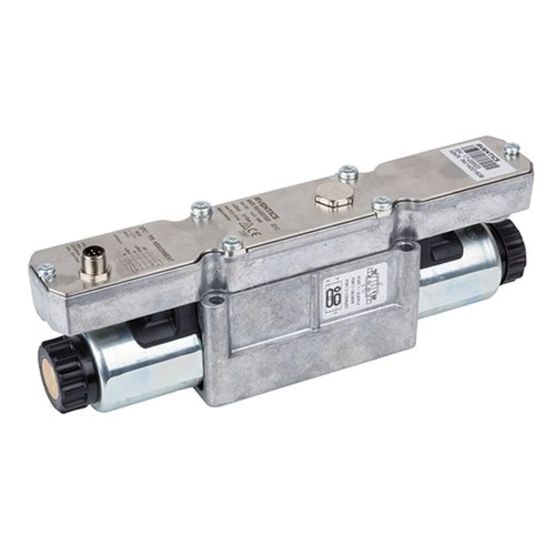

Representative photo. Please check item description for details.
AVENTICS ED12 Series Dynamic Direct Acting Pressure Regulator, 4-20 mA, 0.5 to 12 bar, 5-Pin M12 Plug
Manufacturer: Asco LP
Mfg Product Code: R414001636
Weight: 2.0 lb(s)
On Hand: 0
Dyn Dir Actg Pres Reg, 4-20 mA, 0.5 to 12 bar, 5-Pin M12 Plug
The AVENTICS ED07 direct acting pressure regulator offers proportional pressurization and the exhaust valves are controlled seperately to deliver dynamic control for the most demanding applications.
Features
- Type: Poppet valve
- Certificates: CE declaration of conformity
- Working pressure min.: 0.5 bar
- Working pressure max: 12 bar
- Min. ambient temperature: 5 °C
- Max. ambient temperature: 50 °C
- Medium: Compressed air
- Nominal flow Qn: 2600 l/min
- Control: Analog
- DC operating voltage: 24 V
- Hysteresis: < 0,03 bar
- Mounting orientation: α = 0 ... 90° ±β = 0 ... 90°
- Permissible ripple: 5%
- Max. power consumption: 1400 mA
- Protection class: IP65
- Electrical connection: via signal connection
- Signal connection: input and output
- Signal connection: Plug
- Signal connection: M12
- Signal connection: 5-pin
- Actual output value: 4 ... 20 mA
- Nominal input value: 4 ... 20 mA
- Regulation range min.: 0 bar
- Regulation range max.: 10 bar
- Min. medium temperature: 5 °C:
