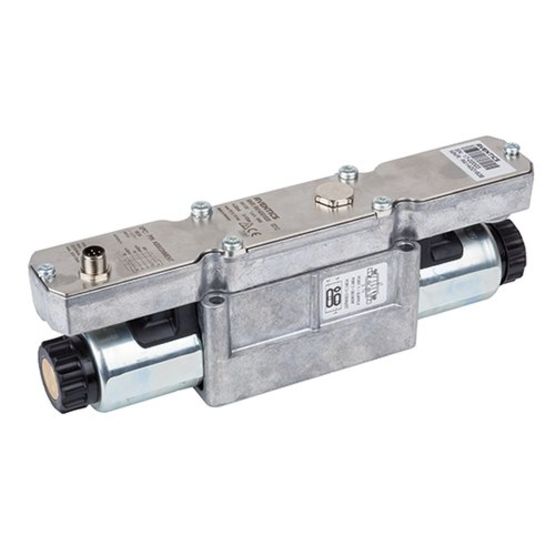

AVENTICS ED12 Series Dynamic Direct Acting Pressure Regulator, 0-10 V, 0.5 to 12 bar, 5-Pin M12 Plug to Socket
Manufacturer: Asco LP
Mfg Product Code: R414000731
Weight: 2.0 lb(s)
On Hand: 0
Dyn Dir Actg Pres Reg, 0-10 V, 0.5 to 12 bar, 5-Pin M12 Plug to Socket
The AVENTICS ED07 direct acting pressure regulator offers proportional pressurization and the exhaust valves are controlled seperately to deliver dynamic control for the most demanding applications.
Features
- Type: Poppet valve
- Certificates: CE declaration of conformity
- Working pressure min.: 0.5 bar
- Working pressure max: 12 bar
- Min. ambient temperature: 5 °C
- Max. ambient temperature: 50 °C
- Medium: Compressed air
- Nominal flow Qn: 2600 l/min
- Control: Analog
- DC operating voltage: 24 V
- Hysteresis: < 0,03 bar
- Mounting orientation: α = 0 ... 90° ±β = 0 ... 90°
- Permissible ripple: 5%
- Max. power consumption: 1400 mA
- Protection class: IP65
- Electrical connection: Plug
- Electrical connection: M12
- Electrical connection: 5-pin
- Signal connection: input and output
- Signal connection: Socket
- Signal connection: M12
- Signal connection: 5-pin
- Actual output value: 0 ... 10 V
- Nominal input value: 0 ... 10 V
- Regulation range min.: 0 bar:
