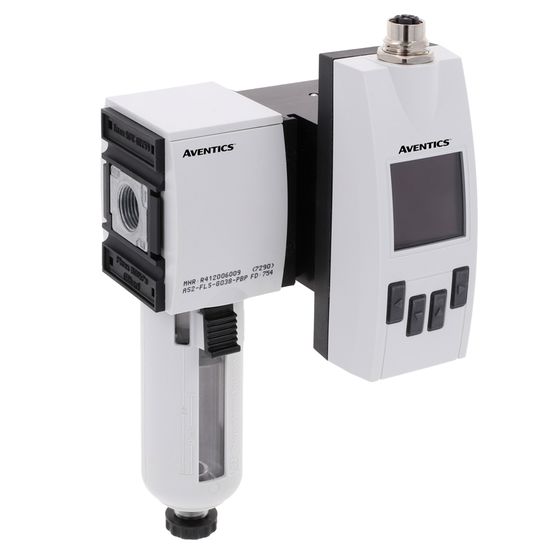

AVENTICS AF2 Series IO-Link Flow Sensor, G 3/8 BSP,5-1060 l/min, 8-pin M12x1 Plug

Manufacturer: Asco LP

Mfg Product Code: R412026837

Weight: 2.0 lb(s)

IO-Link Flow Sensor, G 3/8 BSP,5-1060 l/min, 8-pin M12x1 Plug

The AVENTICS Series AF2 are flow sensors that monitor air consumption in pneumatic systems, enabling rapid intervention in the event of leakage. The Series AF2 helps to optimize energy consumption, prevent machine downtime and cut costs.

Features

• Frame size: AS2
• Switching principle: Flow measuring principle: calorimetric
• Nominal flow Qn min., Standard: 5 l/min
• Nominal flow Qn max., Standard: 1060 l/min
• Nominal flow Qn min., extended: 1060 l/min
• Nominal flow Qn max., extended: 1590 l/min
• Compressed air connection: G 3/8
• Certificates: RoHS, CE declaration of conformity
• Working pressure min.: 0 bar
• Working pressure max: 16 bar
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 60 °C
• Min. medium temperature: -20 °C
• Max. medium temperature: 60 °C
• Medium: Helium, Argon, Carbon dioxide, Nitrogen, Compressed air
• filter porosity: 5 µm
• Display: OLED
• Flow display unit: l/min, l/sec, m³/min, ft³/s, m³/h
• Pressure display unit: bar, psi
• Temperature display unit: °C, °F
• Electrical connection: Plug
• Electrical connection: M12x1
• Electrical connection: 8-pin
• Power consumption max.: 5 W
• Operating voltage DC, min.: 36 V DC:
