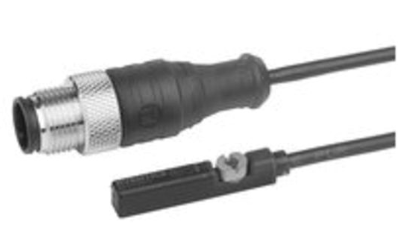

AVENTICS ST6 Series Magnetic Proximity Sensor, 10-30V AC/DC, NO Operation
Manufacturer: Asco LP
Mfg Product Code: R412022876
Weight: 0.01 lb(s)
On Hand: 0
Bus Coupler,PROFINET IO, 24 VDC, System Error, Undervoltage
The AVENTICS Series AES fieldbus connection can be integrated into all AVENTICS fieldbus-compatible valve systems or can also be configured as a stand-alone solution. AES connects your AVENTICS valve system to all relevant fieldbus protocols and offers the integration of I/O-modules and enables optimized decentralized wiring of sensors. The integration of the Digital Twin enables users to be IIoT ready and use the AES to solve their interoperability challenges.
Features
- Version: Bus coupler
- Note: Do not use in new constructions!
- Fieldbus protocol:PROFINET IO
- E/A capable: connection with I/O
- Number of I/O connections: 512 inputs / 512 outputs
- Power plug IN type: Plug
- Power plug IN size: M12x1
- Power plug IN number of pole: 4-pin
- Power plug IN coding: A-coded
- Fieldbus design: D-design
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 60 °C
- Number of solenoid coils max.: 128
- Max. number of valve positions: 64
- Operational voltage electronics: 24 V DC
- Electronics voltage tolerance: -25% / +25%
- Power consumption electronics: 0.1 A
- Operating voltage, actuators: 24 V DC
- Total current for actuators: 4 A
- Protection class: IP65
- Cycle time at 256 bits: < 1 ms
- Logic/actuator voltage: Galvanically isolated
- Diagnosis: System error, Undervoltage
- I/O module extension max.: 10
- Generic emission standard in accordance with norm: EN 61000-6-4:
