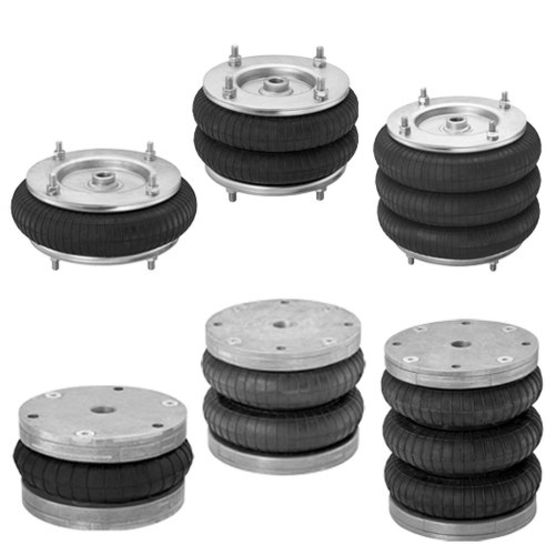

Representative photo. Please check item description for details.

AVENTICS BCC Series 8" Single Natural Rubber Bellows Actuator, G 1/2, 18000 N Fmax

https://www.branom.com/web/image/product.template/207358/image_1920?unique=0481e2a
(0 review)

Manufacturer: Asco LP

Mfg Product Code: R412020586

Weight: 6.84 lb(s)

On Hand: 0

8" Single Natural Rubber Bellows Actuator, G 1/2, 18000 N Fmax

The AVENTICS Series BCC cylinders are bellow cylinders with removable mounting parts. Users have the option of replacing the rubber bellows themselves. Mounting via internal thread or threaded bolt.

Features

  • Bellows: single
  • Type: Bellow actuator with mounting ring and cover
  • Functional principle: Single-acting, retracted without pressure
  • Compressed air connection: G 1/2
  • Cover diameter: 184 mm
  • Feature: 8x1
  • Permissible angle of tilt max.: 20 °
  • Max. effective stroke: 65 mm
  • Min. radial installation space: 245 mm
  • Force min.: 8000 N
  • Force max.: 18000 N
  • Working pressure min.: 0 bar
  • Working pressure max: 8 bar
  • Min. ambient temperature: -40 °C
  • Max. ambient temperature: 70 °C
  • Medium: Compressed air
  • Reduced service life at a temperature greater than: 50 °C
  • Pressure for determining forces: 6 bar
  • Weight: 3.1 kg
  • Material bellow: caoutchouc/butadiene caoutchouc
  • Material front cover: Steel
  • Surface cover: galvanized:

482.33 482.33 USD 482.33

482.33

Not Available For Sale

    This combination does not exist.


    Product Datasheets

    Datasheet 1

    AVENTICS BCC Series 8" Single Natural Rubber Bellows Actuator, G 1/2, 18000 N Fmax

      482.33 482.33 USD 482.33

      482.33

      Not Available For Sale

      This combination does not exist.


      8" Single Natural Rubber Bellows Actuator, G 1/2, 18000 N Fmax
