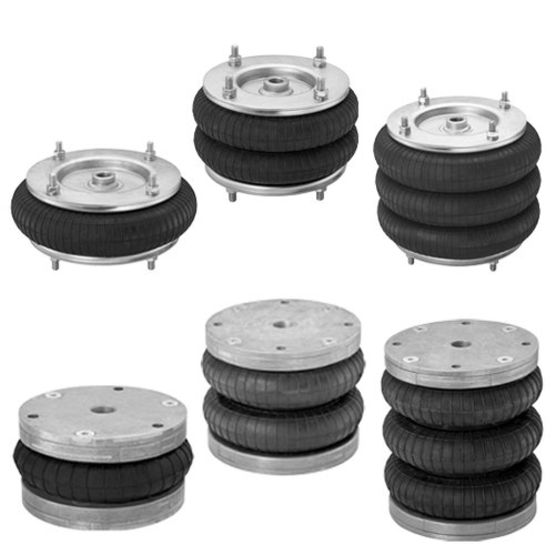

Representative photo. Please check item description for details.
AVENTICS BCC Series 2-3/4" Single Synthetic Rubber Bellows Actuator, G 1/4, 2600 N Fmax
Manufacturer: Asco LP
Mfg Product Code: R412020583
Weight: 1.0 lb(s)
On Hand: 0
2-3/4" Single Synthetic Rubber Bellows Actuator, G 1/4, 2600 N Fmax
The AVENTICS Series BCC cylinders are bellow cylinders with removable mounting parts. Users have the option of replacing the rubber bellows themselves. Mounting via internal thread or threaded bolt.
Features
- Bellows: single
- Type: Bellow actuator with mounting ring and cover
- Functional principle: Single-acting, retracted without pressure
- Compressed air connection: G 1/4
- Cover diameter: 78 mm
- Feature: 2 3/4x1
- Permissible angle of tilt max.: 20 °
- Max. effective stroke: 15 mm
- Min. radial installation space: 95 mm
- Force min.: 1300 N
- Force max.: 2600 N
- Working pressure min.: 0 bar
- Working pressure max: 8 bar
- Min. ambient temperature: -30 °C
- Max. ambient temperature: 90 °C
- Medium: Compressed air
- Reduced service life at a temperature greater than: 70 °C
- Pressure for determining forces: 6 bar
- Weight: 0.45 kg
- Material bellow: Chloroprene rubber
- Material front cover: Aluminum:
