AVENTICS CSL-RD Series SS Round Cylinder, Double-Acting, Single 16 mm Piston Rod, 320mm Stroke, ISO 6432

Manufacturer: Asco LP

Mfg Product Code: R412020406

Weight: 2.0 lb(s)

SS Round Cylinder, Dbl-Acting, Single 16mm Piston Rod, 320mm Stroke, ISO 6432

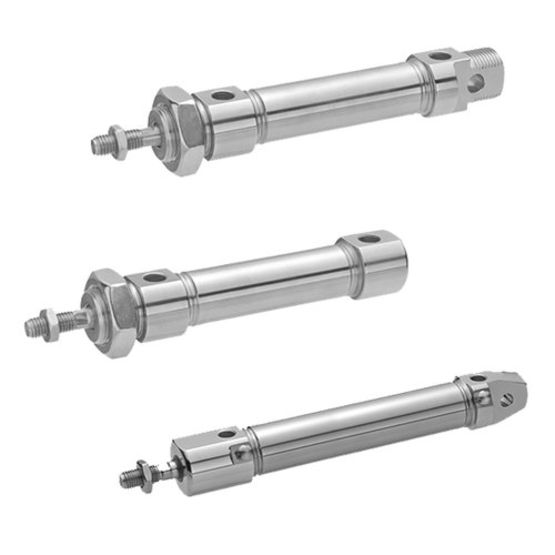

The AVENTICS Series CSL-RD (ISO 6432) cylinder is a stainless-steel round cylinder, configurable in three different designs: standard, hygienic and short. The Series CSL-RD (ISO 6432) has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals it is suitable for food contact. In addition, the cylinders are certified in accordance with regulation (EC) No 1935/2004.

Features

• Standards: ISO 6432
• Piston Ø: 16 mm
• Stroke: 320 mm
• Ports: M5
• Functional principle: Double-acting
• Cushioning: Elastic cushioning
• Magnetic piston: Piston with magnet
• Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional
• Piston rod: single
• Cylinder special features: Version: standard type
• Scraper: Food-Grade Scraper
• Pressure for determining piston forces: 6,3 bar
• Retracting piston force: 109 N
• Extracting piston force: 127 N
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 80 °C
• Working pressure min.: 1 bar
• Working pressure max: 10 bar
• Piston rod thread: M6
• Impact energy: 0.14 J
• Weight 0 mm stroke: 0.034 kg
• Weight +10 mm stroke: 0.0024 kg
• Stroke max.: 800 mm
• Medium: Compressed air
• Min. medium temperature: -20 °C:
