AVENTICS BCC Series 6" Triple Synthetic Rubber Bellows Actuator, G 1/2, 11000 N Fmax

Manufacturer: Asco LP

Mfg Product Code: R412019469

Weight: 4.41 lb(s)

6" Triple Synthetic Rubber Bellows Actuator, G 1/2, 11000 N Fmax

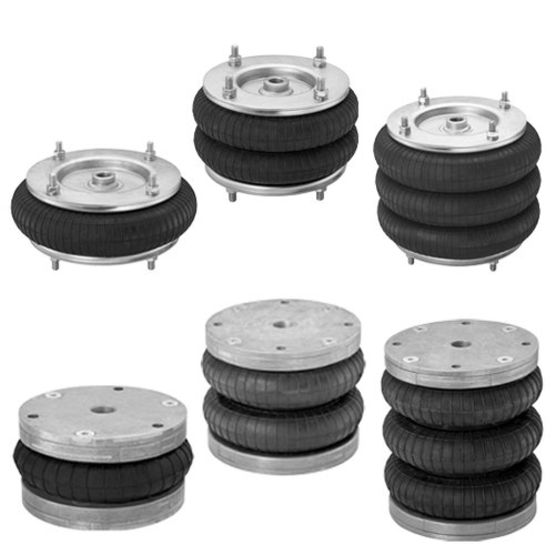

The AVENTICS Series BCC cylinders are bellow cylinders with removable mounting parts. Users have the option of replacing the rubber bellows themselves. Mounting via internal thread or threaded bolt.

Features

• Bellows: triple
• Type: Bellow actuator with mounting ring and cover
• Functional principle: Single-acting, retracted without pressure
• Compressed air connection: G 1/2
• Cover diameter: 152.5 mm
• Feature: 6x3
• Permissible angle of tilt max.: 30 °
• Max. effective stroke: 160 mm
• Min. radial installation space: 195 mm
• Force min.: 4000 N
• Force max.: 11000 N
• Working pressure min.: 0 bar
• Working pressure max: 8 bar
• Min. ambient temperature: -30 °C
• Max. ambient temperature: 90 °C
• Medium: Compressed air
• Reduced service life at a temperature greater than: 70 °C
• Pressure for determining forces: 6 bar
• Weight: 2 kg
• Material bellow: Chloroprene rubber
• Material front cover: Aluminum:
