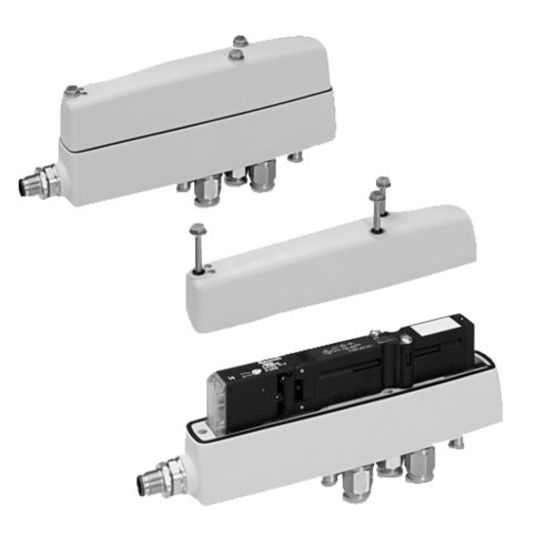

AVENTICS CL03-EV Series Directional Valve, 16 mm, 5/3 Closed Center, Manual Override w/Detent

Manufacturer: Asco LP

Mfg Product Code: R412017954

Weight: 2.0 lb(s)

Directional Valve, 16 mm, 5/3 Closed Center, Manual Override w/Detent

The AVENTICS Series CL03-EV spool valves are hygienically designed. They easily resist wet cleaning with aggressive cleaning detergents. The Series complies with protection class IP69K, is suitable for class NSF-H1 lubricants and designed for intensive application in the food and beverage industry.

Features

• Activation: Electrically
• Nominal flow Qn: 700 l/min
• Switching principle: 5/3
• Version: Closed Center
• Compressed air connection output: Ø 8
• Working pressure min.: -0.9 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -15% / +20%
• Manual override: with detent
• Sealing principle: Soft Seal
• Pilot: External
• Certificates: UR (Underwriters Laboratories)
• Pilot valve width: 16 mm
• Valve type: Spool valve, positive overlapping
• Connection type: Plate connection
• Blocking principle: Single base plate principle
• suitable for use in food processing: suitable for use in food processing
• Control pressure min.: 3 bar
• Control pressure max.: 10 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 50 °C
• Medium: Compressed air:
