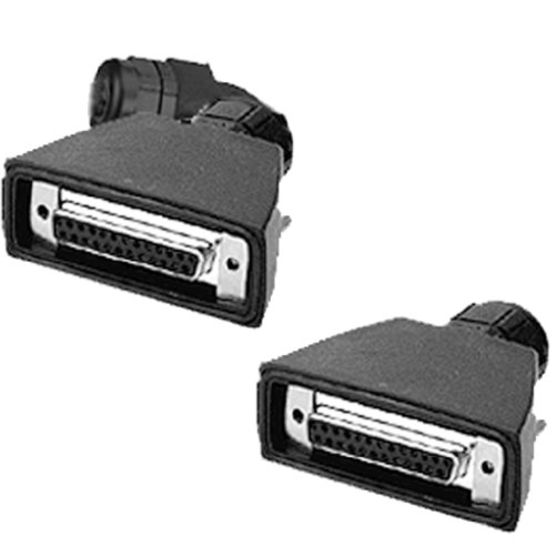

AVENTICS CON-MP Series Multipole Plug, 25-pin D-Sub Socket, 24 VDC, Polyamide

Manufacturer: Asco LP

Mfg Product Code: R412011250

Weight: 4.5 lb(s)

Multipole Plug, 25-pin D-Sub Socket, 24 VDC, Polyamide

The AVENTICS Series CON-MP offers multipol plugs with D-SUB connection for self-assembly.

Features

• Type: Multipole
• Cable: with cable
• Operating voltage AC max.: 24 V DC
• Electrical connection 1: Socket
• Electrical connection 1: D-Sub
• Electrical connection 1: 25-pin
• Cable exit: angled
• Cable exit angle: 90°
• Electrical connection 2: open cable ends
• Electrical connection 2: 25-pin
• Number of wires: 25
• Shielding: unshielded
• Cable length: 10 m
• Certificates: UL (Underwriters Laboratories)
• Protection class: IP65
• Min. ambient temperature: -5 °C
• Max. ambient temperature: 50 °C
• Max. current: 3 A
• Wire cross-section: 0.34 mm²
• Cable-Ø: 11.2 mm
• Weight: 2.04 kg
• Housing material: Polyamide
• Material cable sheath: Polyvinyl chloride:
